ERA-3VPB1001V
lmages are for reference only.ERA-3VPB1001V
RES 1K OHM 0.1% 1/8W 0603
Datasheet0603 (1608 Metric)
88,448 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
ERA-3VPB1001V
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Panasonic Electronic Components |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Panasonic Electronic Components |
| Series | ERA-3V |
| Resistance | 1 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | ERA-3VPB |
| Product Attribute |  |
 |
 |
 |
| Part Number | ERA-3VPB1002V | ERA-3VPB1003V | ERA-3VPB1021V | ERA-3VPB1022V |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

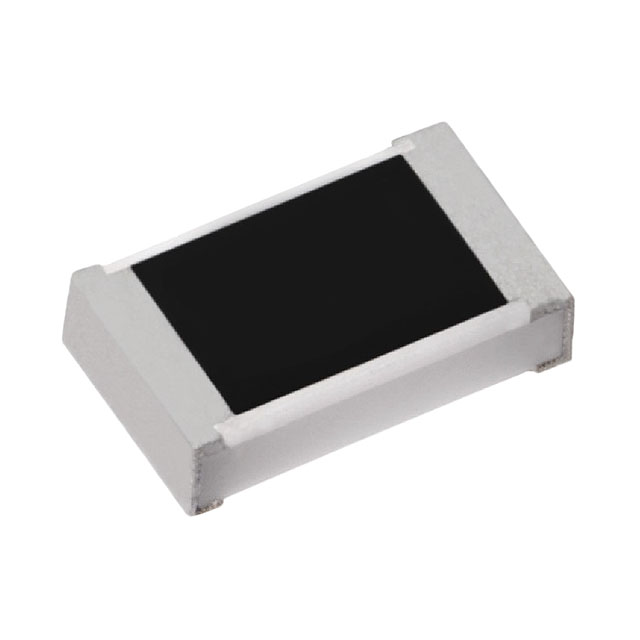

| Description | RES 10K OHM 0.1% 1/8W 0603 | RES 100K OHM 0.1% 1/8W 0603 | RES 1.02K OHM 0.1% 1/8W 0603 | RES 10.2K OHM 0.1% 1/8W 0603 |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
