ERA-6VPB2372V

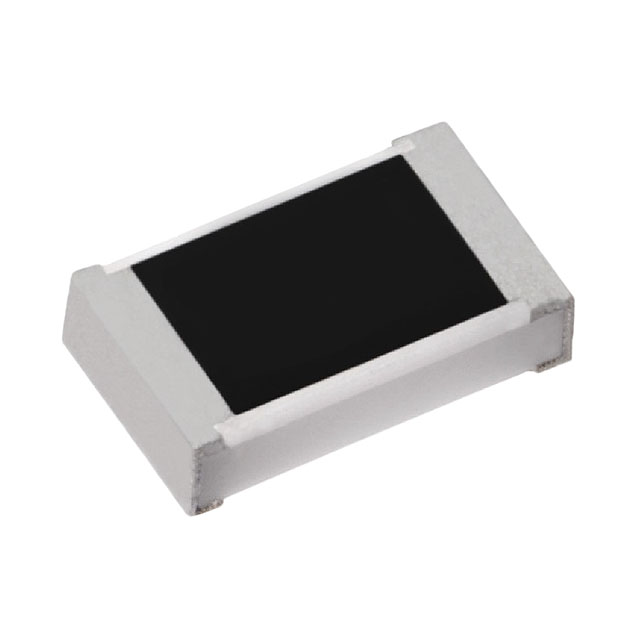

lmages are for reference only.ERA-6VPB2372V
RES 23.7K OHM 0.1% 1/4W 0805
Datasheet0805 (2012 Metric)
99,241 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
23.7 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
ERA-6VPB2372V
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Panasonic Electronic Components |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Panasonic Electronic Components |
| Series | ERA-6V |
| Resistance | 23.7 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | ERA-6VPB |
| Product Attribute |  |
 |
 |
 |
| Part Number | ERA-6VPB2321V | ERA-6VPB2322V | ERA-6VPB2371V | ERA-6VPB1001V |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 2.32K OHM 0.1% 1/4W 0805 | RES 23.2K OHM 0.1% 1/4W 0805 | RES 2.37K OHM 0.1% 1/4W 0805 | RES 1K OHM 0.1% 1/4W 0805 |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
