ERA-8AED3571V
lmages are for reference only.ERA-8AED3571V
RES 3.57K OHM 0.50% 1/8W 1206
Datasheet1206 (3216 Metric)
93,824 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.57 kOhms ±0.5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thin Film
ERA-8AED3571V
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Panasonic Electronic Components |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Panasonic Electronic Components |
| Series | ERA-8A |
| Resistance | 3.57 kOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

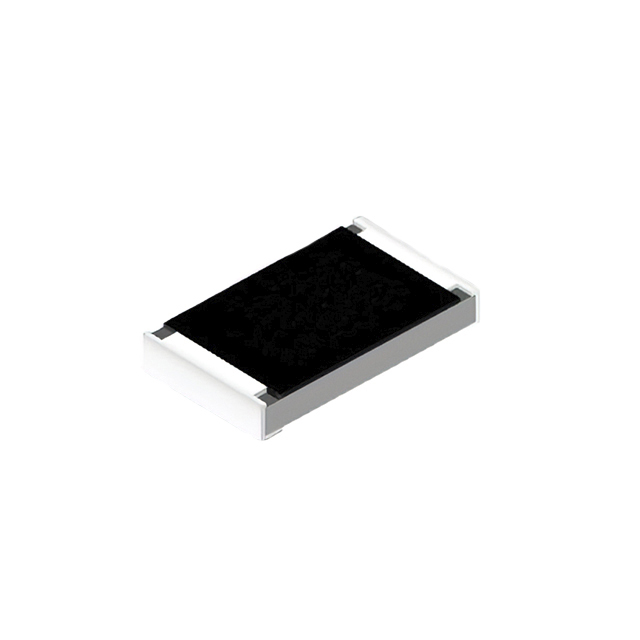

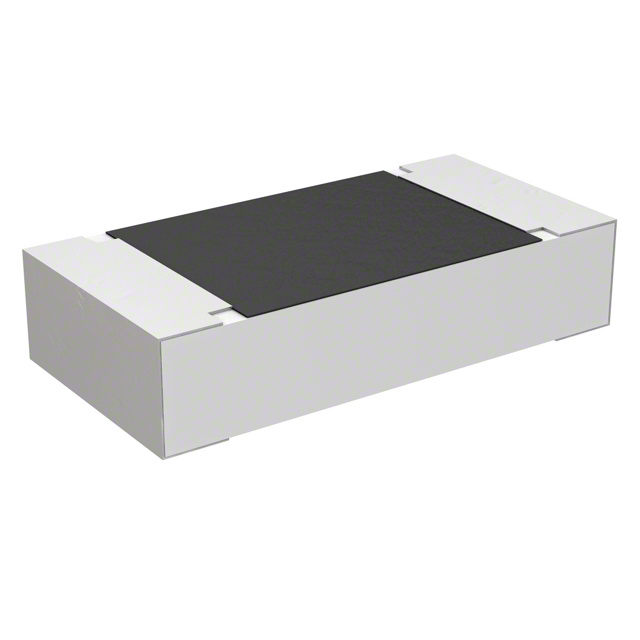

| Part Number | ERA-8AED3570V | ERA-8AED3572V | ERA-8AED3573V | ERA-8AEB101V |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 357 OHM 0.50% 1/8W 1206 | RES 35.7K OHM 0.50% 1/8W 1206 | RES 357K OHM 0.50% 1/8W 1206 | RES SMD 100 OHM 0.1% 1/4W 1206 |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
