ERM02U100
lmages are for reference only.ERM02U100
150W 1/4 BRICK, 36-160VDC IN, 5
Datasheet8-DIP Module
95,623 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 54V 2.78A 36V - 160V Input
ERM02U100
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | ERM150 (150W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.78A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 88.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.30" L x 1.47" W x 0.67" H (58.4mm x 37.3mm x 17.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, UKCA |
| Standard Number | 50155; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
 |
 |
 |

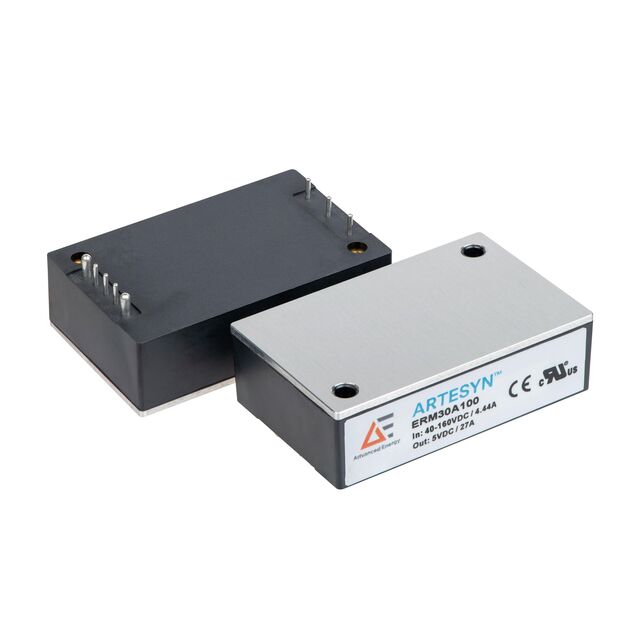

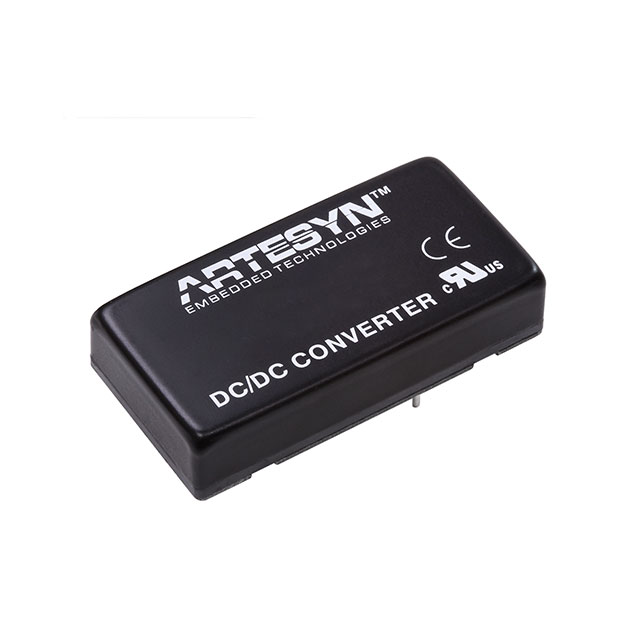

| Part Number | ERM02U100-HS | ERM02U100N | ERM02U100N-HS | ERM00B110 |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 150W 1/4 BRICK, 36-160VDC IN, 5 | 150W 1/4 BRICK, NEG-ENABLE, 36-1 | 150W 1/4 BRICK, NEG-ENABLE, 36-1 | DC DC CONVERTER 12V 10W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Bulk | Tube | Tube | Tube |
