ESD2CAN24DCKRQ1
lmages are for reference only.ESD2CAN24DCKRQ1
AUTOMOTIVE DUAL 3-PF, 24-V, 30-K
DatasheetSC-70, SOT-323
75,698 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
37V (Typ) Clamp 5.7A (8/20µs) Ipp Tvs Diode Surface Mount SC-70-3
ESD2CAN24DCKRQ1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 35.5V |
| Voltage - Clamping (Max) @ Ipp | 37V (Typ) |
| Current - Peak Pulse (10/1000µs) | 5.7A (8/20µs) |
| Power - Peak Pulse | 210W |
| Power Line Protection | No |
| Applications | CAN |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 |
| Base Product Number | ESD2CAN24 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

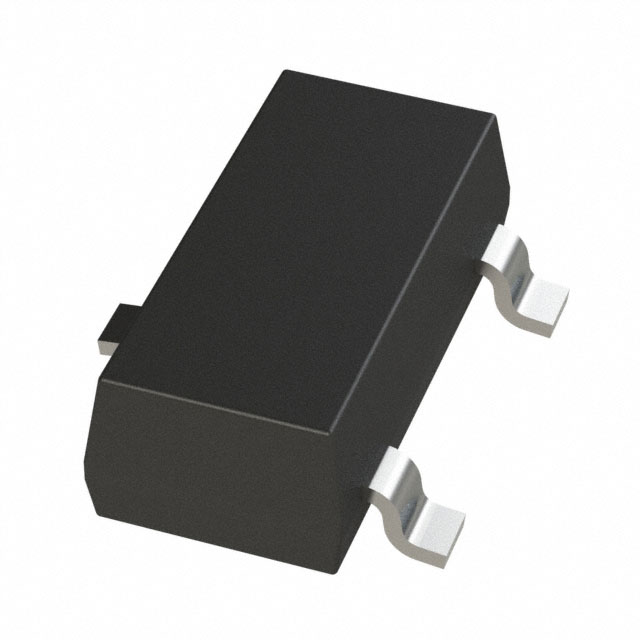

| Part Number | ESD2CAN24DBZRQ1 | ESD2CAN36DBZRQ1 | ESD2CANFD24DBZR | ESD2CANFD24DBZRQ1 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AUTOMOTIVE DUAL 3-PF, 24-V, 30-K | AUTOMOTIVE, TWO-CHANNEL BIDIRECT | DUAL, 2.5PF, 24-V 25-KV ESD PROT | AUTOMOTIVE, DUAL, 2.5PF 24-V 25- |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
