ESD8V0R1B-02LRH E6433
lmages are for reference only.ESD8V0R1B-02LRH E6433
TVS DIODE 14VWM 28VC TSLP-2
DatasheetSOD-882
98,631 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
28V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSLP-2-17
ESD8V0R1B-02LRH E6433
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 14V (Max) |
| Voltage - Breakdown (Min) | 8.5V |
| Voltage - Clamping (Max) @ Ipp | 28V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | 4pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-882 |
| Supplier Device Package | PG-TSLP-2-17 |
| Base Product Number | ESD8V0 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |

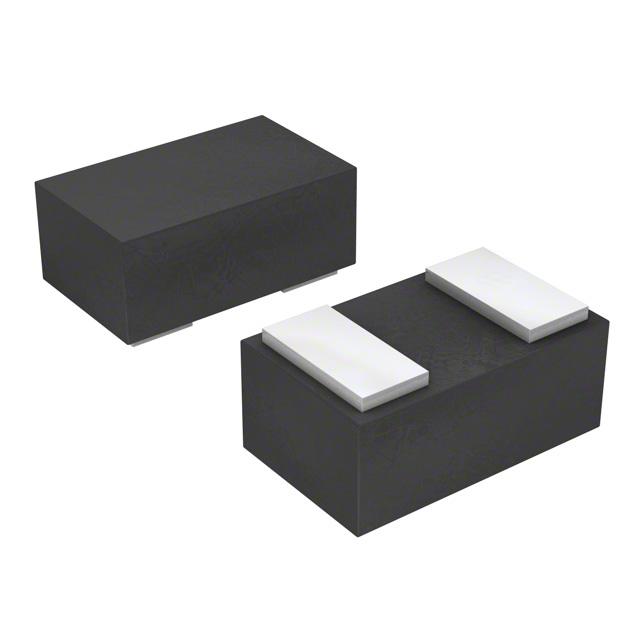

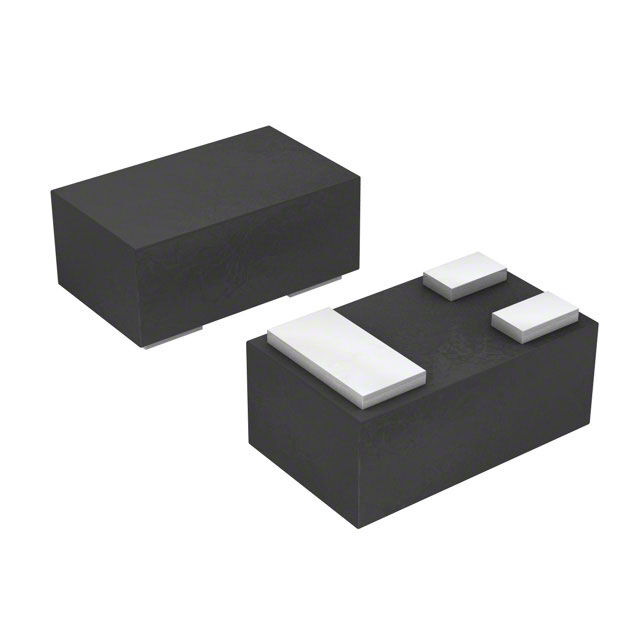

| Part Number | ESD8V0R1B-02EL E6433 | ESD8V0R1B-02LRH E6816 | ESD8V0L1B-02LRH E6327 | ESD8V0L2B03LE6327XTMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | TVS DIODE 14VWM 28VC TSLP-2 | TVS DIODE 14VWM 28VC TSLP-2 | TVS DIODE 14VWM 21VC TSLP-2 | TVS DIODE 22VWM 26VC TSLP-3-1 |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
