Product CatalogPart Number
ESE-22MH57
Manufacturer
Panasonic Electronic ComponentsDescription
SWITCH DETECTOR SPST-NO 0.01A 5V
Datasheet
DatasheetPackage
-
In Stock
22,219 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ESE-22MH57
ESE-22MH57
lmages are for reference only.Payment Methods
Delivery Services
Switch SPST-NO Through Hole
Quick Inquiry
ESE-22MH57
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | Panasonic Electronic Components |
| Series | ESE22 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | ESE-22 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 10mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 5 V |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Through Hole |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Features | - |
| Operating Force | 28gf |
| Release Force | - |
| Operating Position | 0.055" (1.4mm) |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -10°C ~ 70°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | ESE-22MH51 | ESE-22MH52 | ESE-22MH53 | ESE-22MH54 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | SWITCH DETECTOR SPST-NO 0.01A 5V | SWITCH DETECTOR SPST-NO 0.01A 5V | SWITCH DETECTOR SPST-NO 0.01A 5V | SWITCH DETECTOR SPST-NO 0.01A 5V |
| Series | ESE22 | ESE22 | ESE22 | ESE22 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

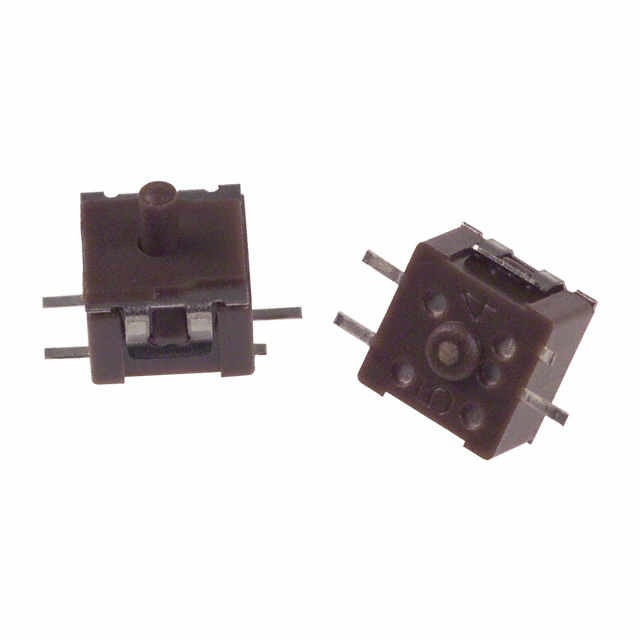

ESE-2101BT
Panasonic Electronic Components

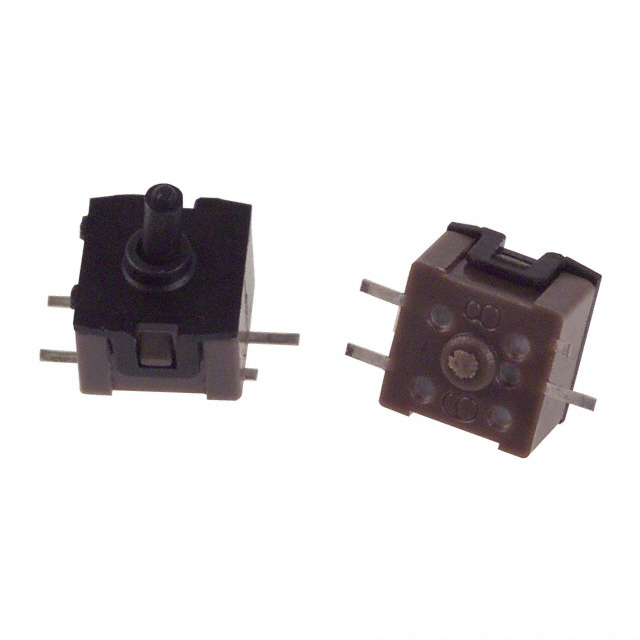

ESE-2121AT
Panasonic Electronic Components
ESE-2121BT
Panasonic Electronic Components
ESE-2131AT
Panasonic Electronic Components
ESE-2131BT
Panasonic Electronic Components
ESE-2161AT
Panasonic Electronic Components
ESE-2161BT
Panasonic Electronic Components
ESE-22MH2
Panasonic Electronic Components
ESE-22MH21
Panasonic Electronic Components
ESE-22MH22
Panasonic Electronic Components

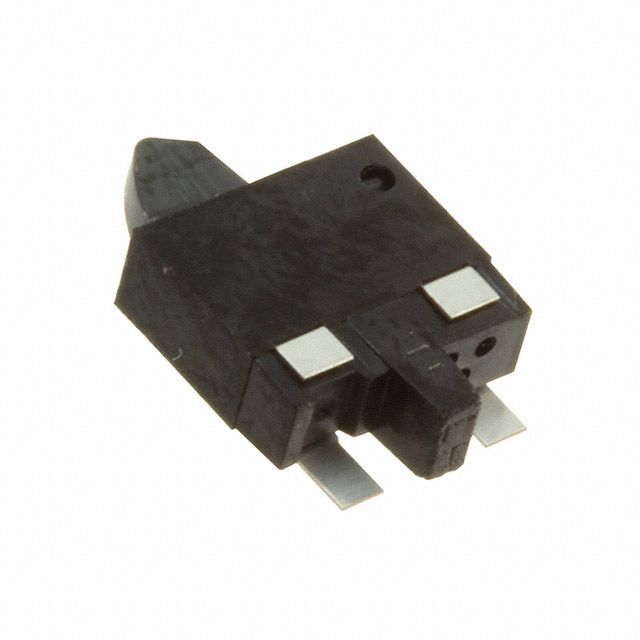

ESE-22MH23
