ESRD100M06B

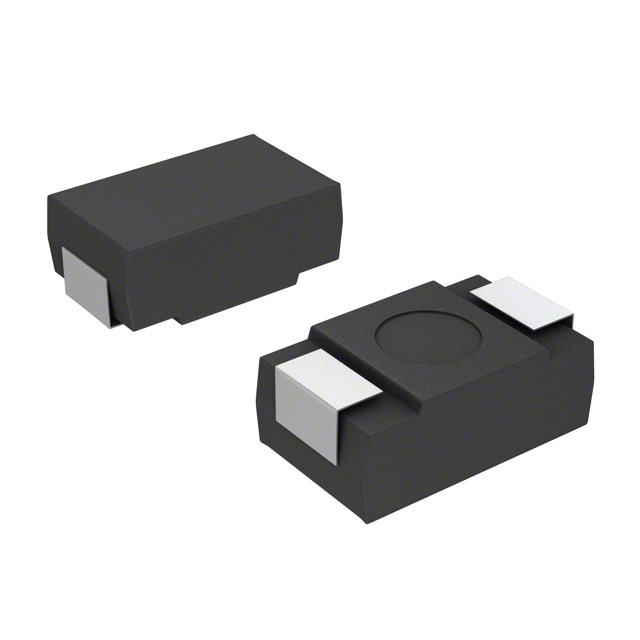

lmages are for reference only.ESRD100M06B
CAP ALUM POLY 10UF 20% 6.3V SMD
Datasheet2917 (7343 Metric)
44,282 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF 6.3 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 55mOhm 1000 Hrs @ 105°C
ESRD100M06B
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | ESRD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 55mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ESRD100M06R | ESRD100M12B | ESRD100M12R | ESRD101M02B |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 10UF 20% 6.3V SMD | CAP ALUM POLY 10UF 20% 12.5V SMD | CAP ALUM POLY 10UF 20% 12.5V SMD | CAP ALUM POLY 100UF 20% 2V SMD |
| Series | ESRD | ESRD | ESRD | ESRD |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
