ESRD8R2M08B
lmages are for reference only.ESRD8R2M08B
CAP ALUM POLY 8.2UF 20% 8V SMD
Datasheet2917 (7343 Metric)
41,836 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8.2 µF 8 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 55mOhm 1000 Hrs @ 105°C
ESRD8R2M08B
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | ESRD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 8.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 8 V |
| ESR (Equivalent Series Resistance) | 55mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

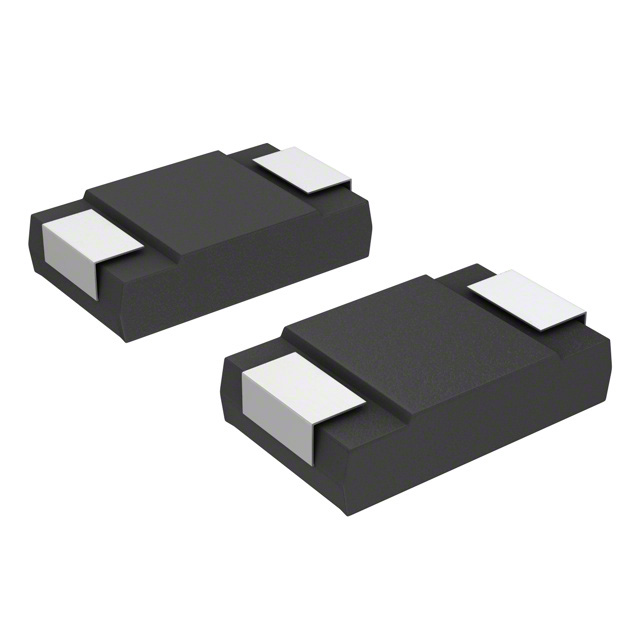

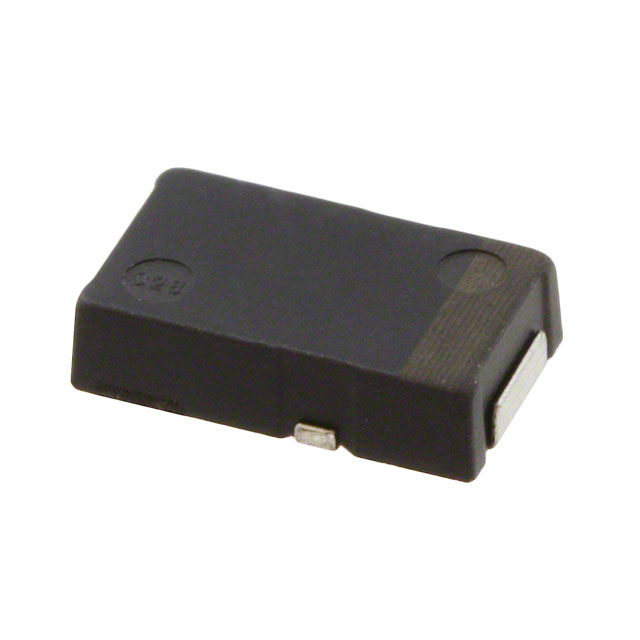

| Part Number | ESRD8R2M08R | ESRD8R2M16B | ESRD8R2M16R | EEF-LX0E331R4 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 8.2UF 20% 8V SMD | CAP ALUM POLY 8.2UF 20% 16V SMD | CAP ALUM POLY 8.2UF 20% 16V SMD | CAP ALUM POLY 330UF 20% 2.5V SMD |
| Series | ESRD | ESRD | ESRD | SP-Cap LX |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
