ETQ-P5M101YGC
lmages are for reference only.ETQ-P5M101YGC
FIXED IND 97UH 2.7A 229 MOHM SMD
Datasheet2-SMD, J-Lead
98,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
97 µH Shielded Drum Core, Wirewound Inductor 2.7 A 229mOhm Max 2-SMD, J-Lead
ETQ-P5M101YGC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Panasonic Electronic Components |
| Series | PCC-M1050M |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 97 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 229mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.421" L x 0.394" W (10.70mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | ETQ-P5 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ETQ-P5M101YGK | ETQ-P5M101YGM | ETQ-P5M100GAK | ETQ-P5M100YFC |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

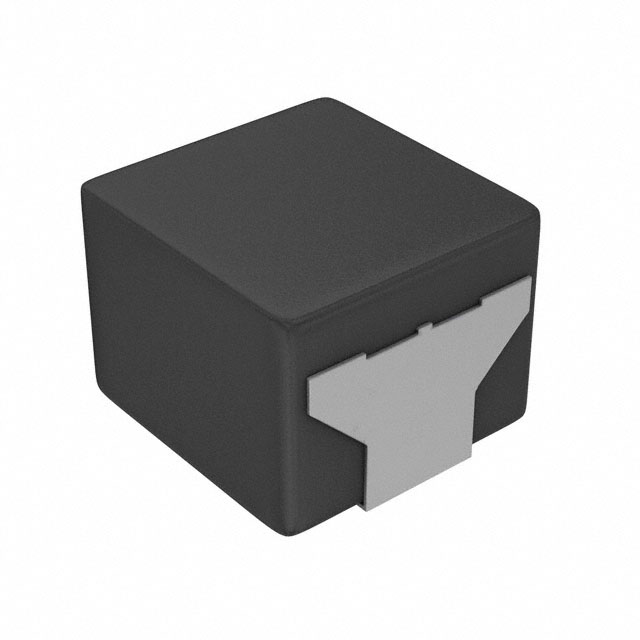

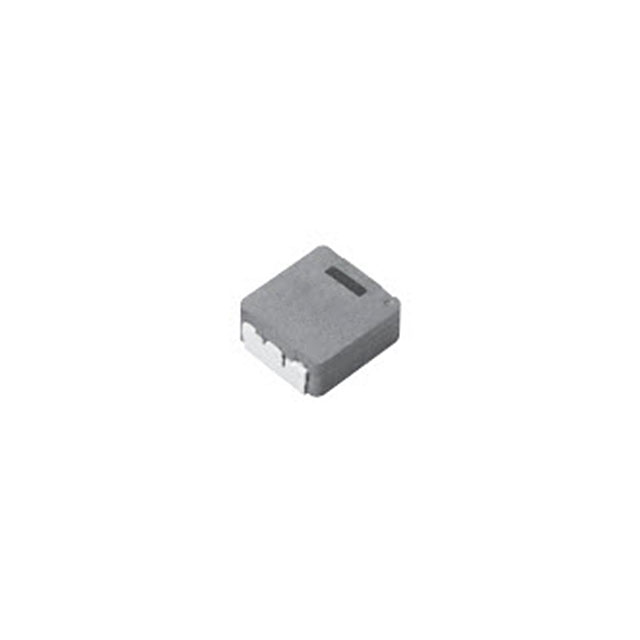

| Description | FIXED IND 100UH 2.1A 333MOHM SMD | FIXED IND 95UH 1.9A 382.8MOHM SM | INDUCTOR FIXED 10UH SMD | FIXED IND 10UH 8.5A 26.2MOHM SMD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
