EVQ-VND00115B
lmages are for reference only.EVQ-VND00115B
ROTARY ENCODER MECHANICAL 15PPR
Datasheet-
16,844 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Rotary Encoder Mechanical 15 Vertical
EVQ-VND00115B
| Category | Sensors, Transducers - Encoders - |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Encoder Type | Mechanical |
| Output Type | - |
| Pulses per Revolution | 15 |
| Voltage - Supply | - |
| Actuator Type | - |
| Detent | Yes |
| Built in Switch | - |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Rotational Life (Cycles Min) | 30K |
| Base Product Number | EVQ-VND |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

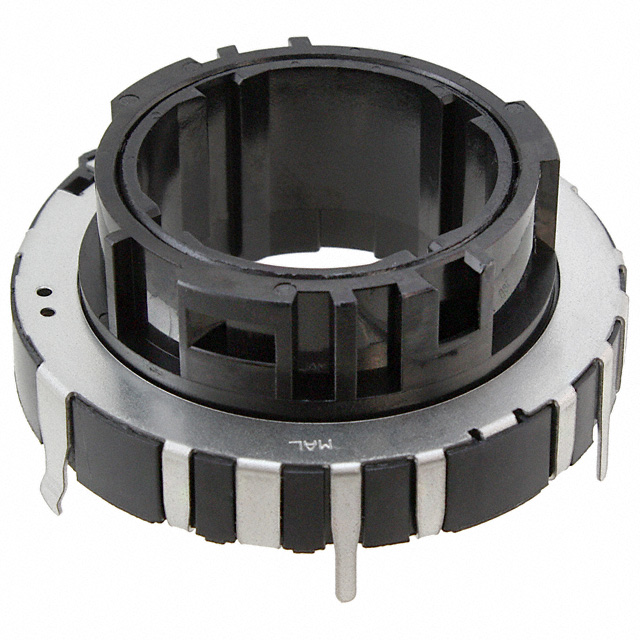

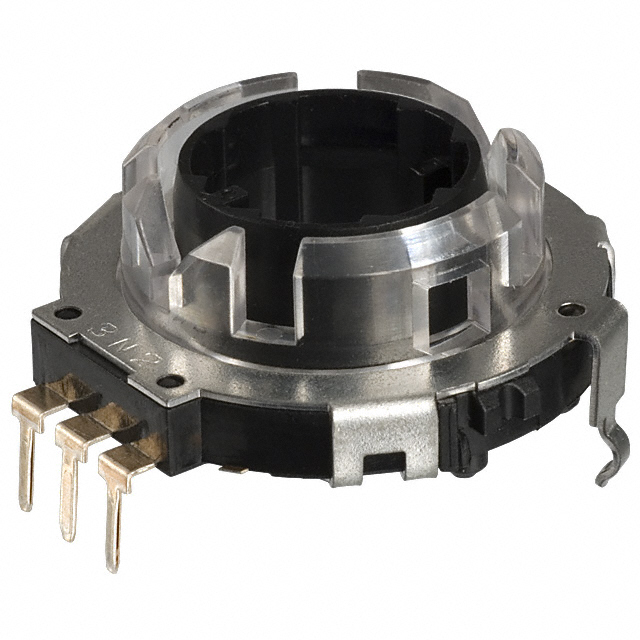

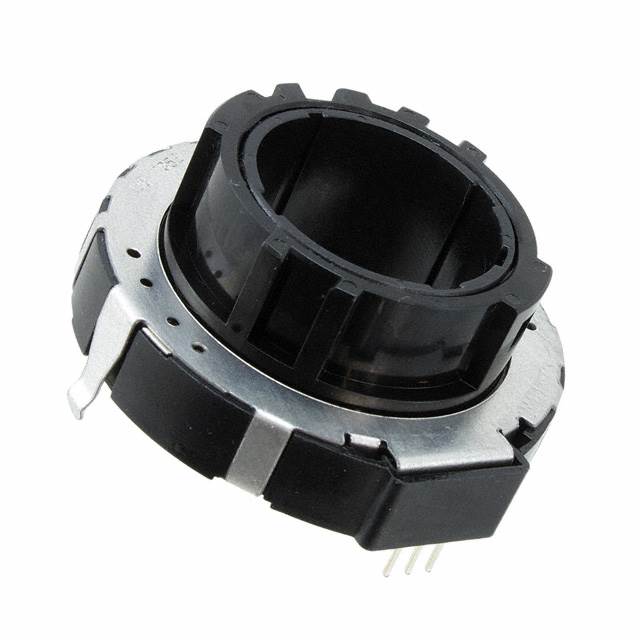

| Part Number | EVQ-1WF00210B | EVQ-V4300418B | EVQ-V4B00218B | EVQ-V5102309B |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | ROTARY ENCODER MECHANICAL 20PPR | ROTARY ENCODER MECHANICAL | ROTARY ENCODER MECHANICAL 18PPR | ROTARY ENCODER MECHANICAL 9PPR |
| Series | - | - | - | EVQV |
| Packaging | Bulk | Tray | Tray | Tray |
