EVS 50A 500V PCBL (PF)
lmages are for reference only.Payment Methods
Delivery Services
50A 275 VAC 500 VDC Fuse Cartridge Through Hole
EVS 50A 500V PCBL (PF)
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Conquer |
| Series | EVS |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 50A |
| Voltage Rating - AC | 275 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 10kA AC, 20kA DC |
| Package / Case | Radial Bend Cylinder |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 9203.0 |
| DC Cold Resistance | 0.00123 Ohms |

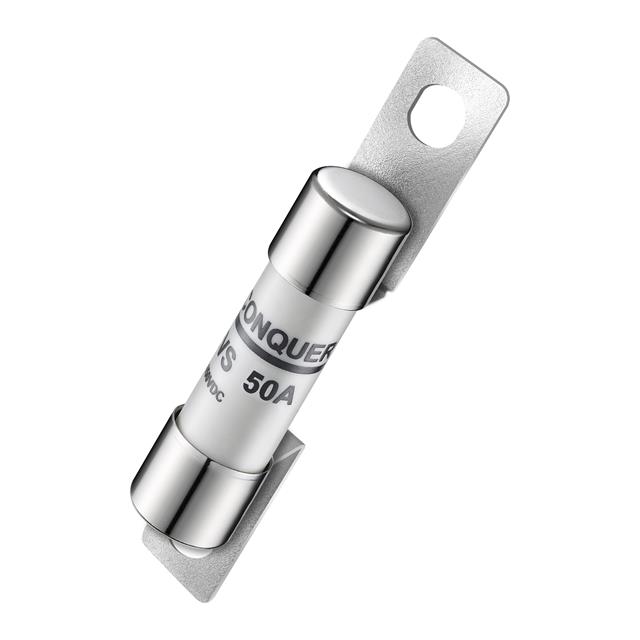

| Product Attribute | .jpg "EVS 50A 500V BD (PF)") |
 |
|
|
| Part Number | EVS 50A 500V BD (PF) | EVK40-300 | EVK14-40-T | EK50 |
| Manufacturer | Conquer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | ROHS3 Compliant | |||
| Description | POWER FUSE, 10*38MM, 15A, 600V | EV Fuse 300A 1000VDC S40 | EV Fuse 40A 1000VDC S14 T Type | FUSE CARTRIDGE 50A 600VAC/250VDC |
| Series | EVS | EVK | EVK | HRCI-CB |
| Packaging | Tray | Bulk | Bulk | Bulk |
