EXL1V0603-R56-R

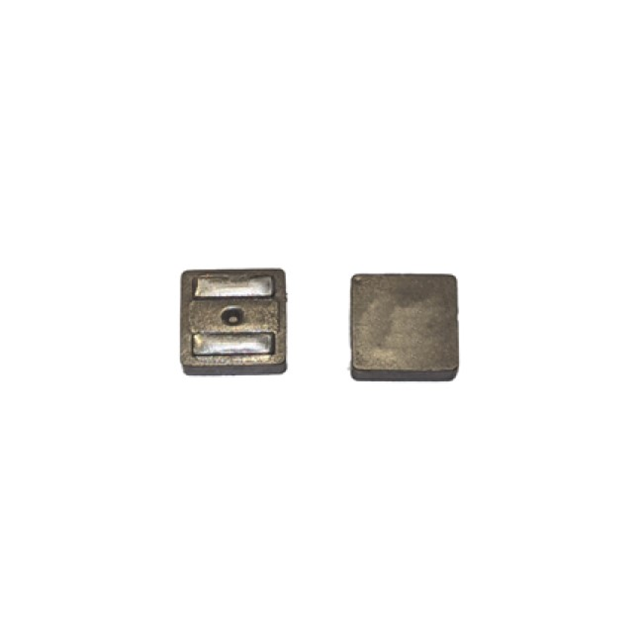

lmages are for reference only.EXL1V0603-R56-R
FIXED IND 560NH 22A 3.31MOHM SMD
DatasheetNonstandard
79,042 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 nH Shielded Molded Inductor 22 A 3.31mOhm Max Nonstandard
EXL1V0603-R56-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EXL1V0603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 22 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | EXL1V0603 |
| Product Attribute |  |
 |
|
|
| Part Number | EXL1V0603-1R0-R | EXL1V0603-1R2-R | EXL1V0603-1R5-R | EXL1V0603-1R8-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 18A 6.05 MOHM SMD | FIXED IND 1.2UH 16A 7.4MOHM SMD | FIXED IND 1.5UH 15A 9.13MOHM SMD | FIXED IND 1.8UH 14A 10.2MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
