EXL1V0606-6R8-R

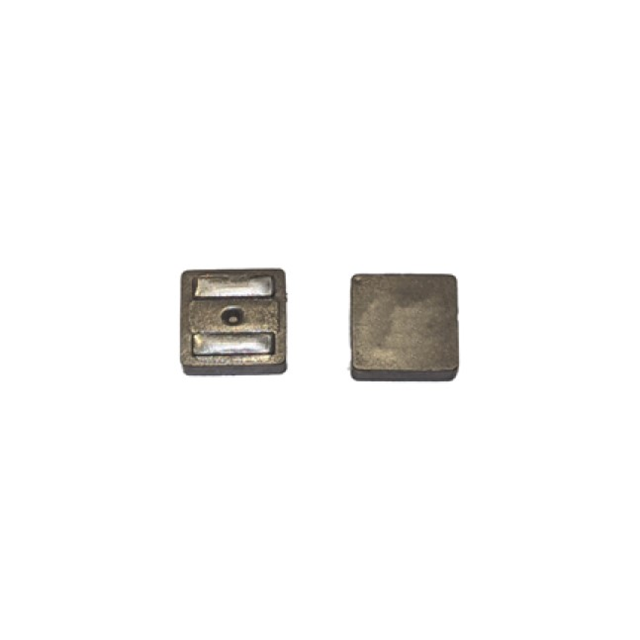

lmages are for reference only.EXL1V0606-6R8-R
FIXED IND 6.8UH 9A 20.8MOHM SMD
DatasheetNonstandard
25,165 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Shielded Molded Inductor 9 A 20.8mOhm Max Nonstandard
EXL1V0606-6R8-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EXL1V0606 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 8.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Base Product Number | EXL1V0606 |
| Product Attribute |  |
 |
 |
|
| Part Number | EXL1V0606-100-R | EXL1V0606-1R0-R | EXL1V0606-1R5-R | EXL1V0606-1R5-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 7A 29.3 MOHM SMD | FIXED IND 1UH 19A 4.29 MOHM SMD | FIXED IND 1.5UH 16A 5.61MOHM SMD | FIXED IND 1.5UH 16A 5.61MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
