F1224XT-2WR3
lmages are for reference only.F1224XT-2WR3
DC DC CONVERTER 24V 2W
Datasheet8-SMD Module, 5 Leads
74,147 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 83mA 10.8V - 13.2V Input
F1224XT-2WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA |
| Power (Watts) | 1.99 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

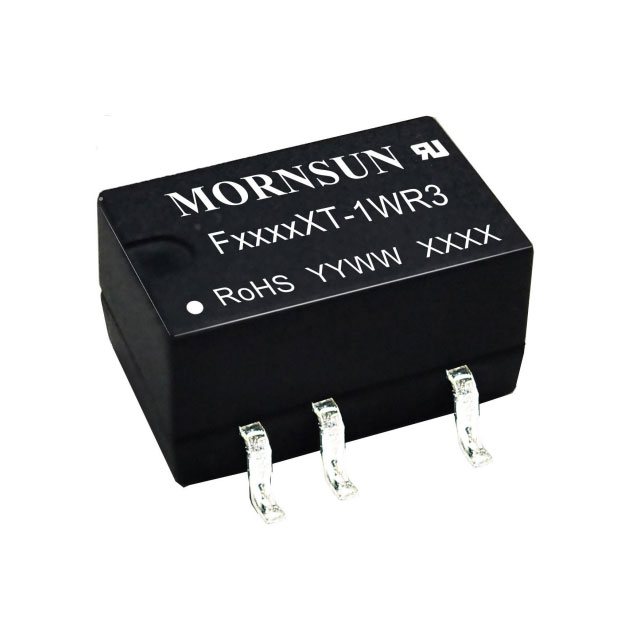

| Part Number | F1224XT-1WR3 | F1224XT-1WR3-TR | F10 | F1203N-1WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | XP Power | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 24V 1W | DC DC CONVERTER 24V 1W | DC DC CONVERTER 1000V 10W | DC DC CONVERTER 3.3V 1W |
| Series | XP Power | |||
| Packaging | F_XT-1WR3 (1W) | F_XT-1WR3 (1W) | Bulk | F_N-1WR3 (1W) |
