F1C1-201608-R24M

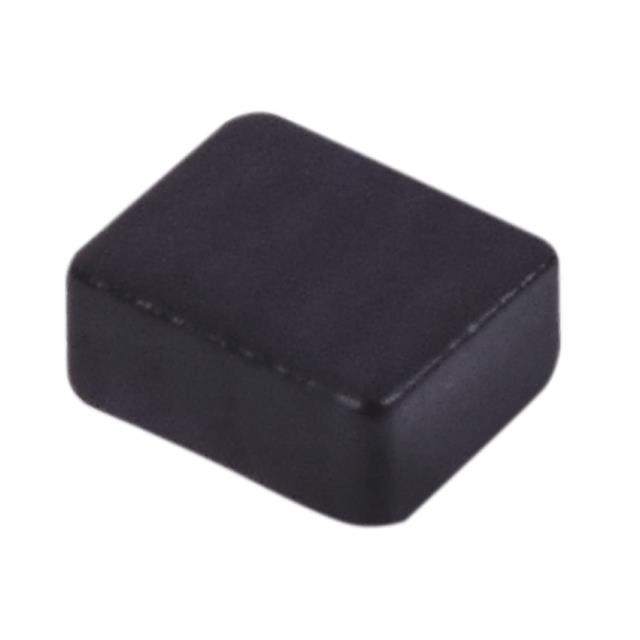

lmages are for reference only.F1C1-201608-R24M
FIXED IND 0.24UH 5.8A 20 MOHM
Datasheet0806 (2016 Metric)
76,484 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
240 nH Shielded Molded Inductor 5.8 A 20mOhm Max 0806 (2016 Metric)
F1C1-201608-R24M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1C1-2016 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | F1C1-201608-R22M | F1C1-201608-R33M | F1C1-201608-R47M | F1C1-201608-R47M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 0.22UH 5.9A 19 MOHM | FIXED IND 0.33UH4.8A 24 MOHM | FIXED IND 0.47UH 4.4A 27 MOHM | FIXED IND 0.47UH 4.4A 27 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
