F1C1-322512-3R3M
lmages are for reference only.F1C1-322512-3R3M
FIXED IND 3.3 UH 2.5A 95 MOHM
Datasheet1210 (3225 Metric)
97,388 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Shielded Molded Inductor 2.5 A 95mOhm Max 1210 (3225 Metric)
F1C1-322512-3R3M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1C1-3225 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 3.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

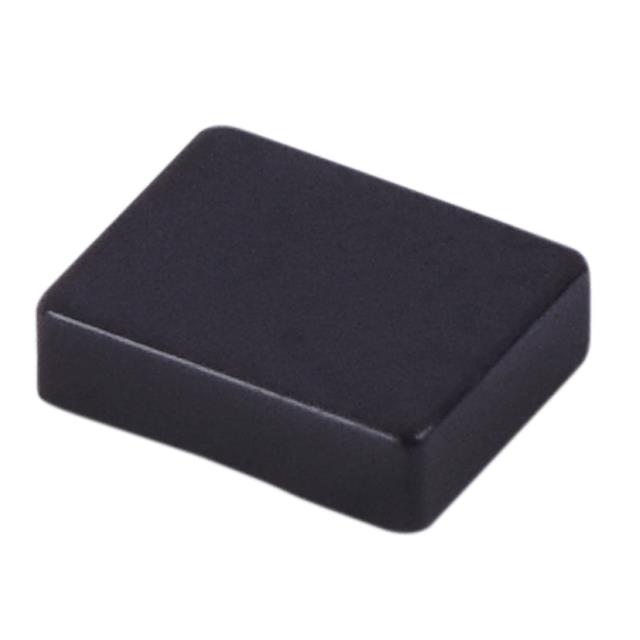

| Part Number | F1C1-322510-100M | F1C1-322510-1R0M | F1C1-322510-1R5M | F1C1-322510-2R2M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10.0 UH 1.8A 365 MOHM | FIXED IND 1.0 UH 4.9A 30 MOHM | FIXED IND 1.5 UH 3.6A 42 MOHM | FIXED IND 2.2 UH 3.4A 66 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
