FB100505T-300Y-S

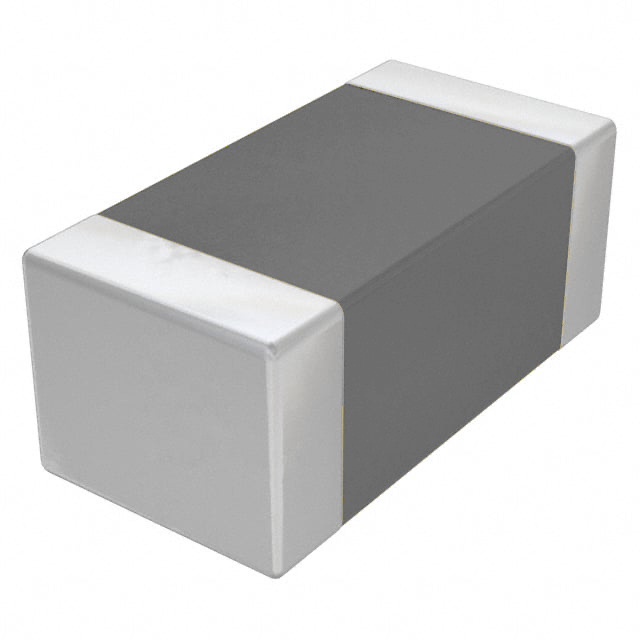

lmages are for reference only.FB100505T-300Y-S
FBEAD 0402 30 OHM .20DC 300MA
Datasheet0402 (1005 Metric)
62,688 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 300mA 200mOhm
FB100505T-300Y-S
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Cal-Chip Electronics, Inc. |
| Series | FB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 200mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.024" (0.60mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FB100505T-300Y-S-1 | FB100505T-100Y-S | FB100505T-101Y-S | FB100505T-102Y-S |
| Manufacturer | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FBEAD 0402 30 OHM .20DC 500MA | FBEAD 0402 10 OHM .05DC 500MA | FBEAD 0402 100 OHM .40DC 200MA | FBEAD 0402 1K OHM 1.5DC 50MA |
| Series | FB | FB | FB | FB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
