FB201209T-400Y-S

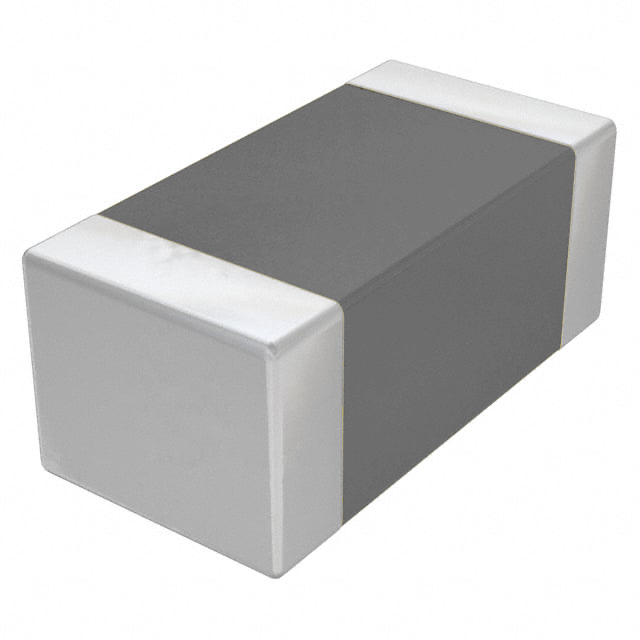

lmages are for reference only.FB201209T-400Y-S
FBEAD 0805 33 OHM .05DC 800MA
Datasheet0805 (2012 Metric)
91,563 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 800mA 50mOhm
FB201209T-400Y-S
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Cal-Chip Electronics, Inc. |
| Series | FB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 40 Ohms @ 100 MHz |
| Current Rating (Max) | 800mA |
| DC Resistance (DCR) (Max) | 50mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.043" (1.10mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FB201209T-050Y-S | FB201209T-070Y-S | FB201209T-100Y-S | FB201209T-101Y-S |
| Manufacturer | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FBEAD 0805 5 OHM .07DC 500MA | FBEAD 0805 7 OHM .07DC 500MA | FBEAD 0805 10 OHM .07DC 500MA | FBEAD 0805 100 OHM .2DC 300MA |
| Series | FB | FB | FB | FB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
