FBU201209T-600Y-S
lmages are for reference only.FBU201209T-600Y-S
FB ULTRA 0805 60 OHM 5A .01DC
Datasheet0805 (2012 Metric)
62,486 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 6A 20mOhm
FBU201209T-600Y-S
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Cal-Chip Electronics, Inc. |
| Series | FBU |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 60 Ohms @ 100 MHz |
| Current Rating (Max) | 6A |
| DC Resistance (DCR) (Max) | 20mOhm |
| Ratings | - |
| Operating Temperature | - |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.041" (1.05mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

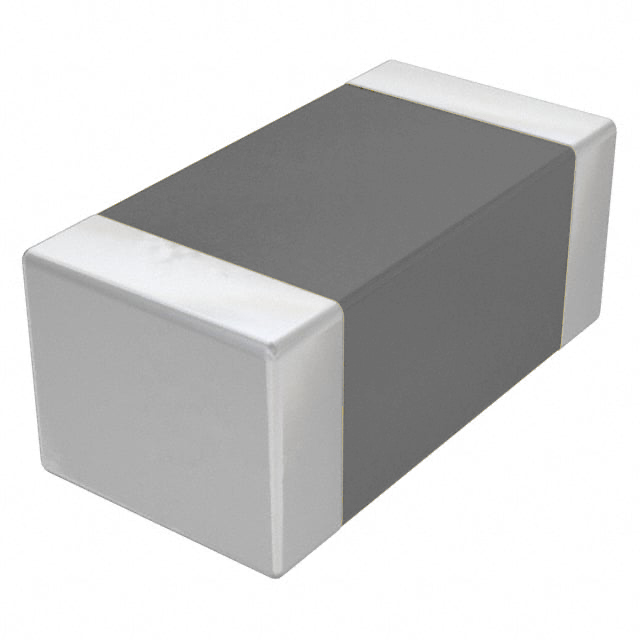

| Part Number | FBU201209T-070Y-S | FBU201209T-100Y-S | FBU201209T-110Y-S | FBU201209T-121Y-S |
| Manufacturer | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. | Cal-Chip Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FB ULTRA 0805 7 OHM 6A .008DC | FB ULTRA 0805 10 OHM 6A .01DC | FB ULTRA 0805 11 OHM 6A .008DC | FB ULTRA 0805 120 OHM 4A .02DC |
| Series | FBU | FBU | FBU | FBU |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
