FCB-0805-121A
lmages are for reference only.FCB-0805-121A
FERRITE BEAD 120 OHM 0805 1LN
Datasheet0805 (2012 Metric)
47,263 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 300mA 250mOhm
FCB-0805-121A
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Signal Transformer |
| Series | FCB-0805 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 250mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.043" (1.10mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

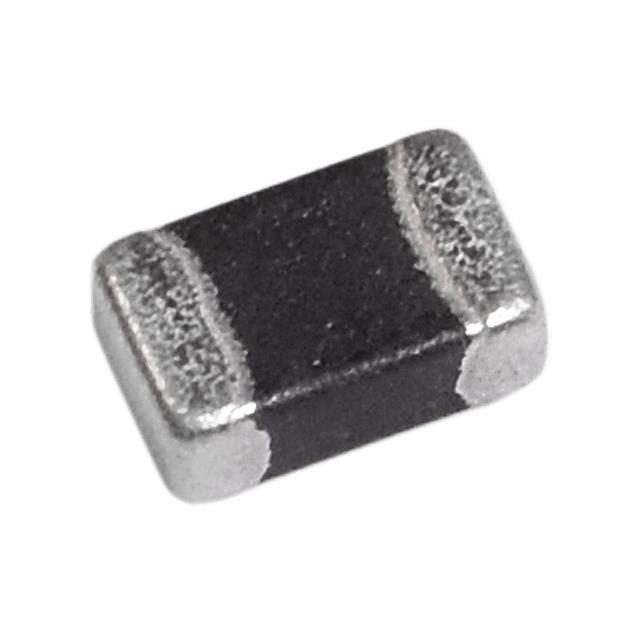

| Part Number | FCB-0805-121P | FCB-0805-101A | FCB-0805-102A | FCB-0805-102P |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 120 OHM 0805 1LN | FERRITE BEAD 100 OHM 0805 1LN | FERRITE BEAD 1000 OHM 0805 1LN | FERRITE BEAD 1000 OHM 0805 1LN |
| Series | FCB-0805 | FCB-0805 | FCB-0805 | FCB-0805 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
