FCBA1-0402F-13NJ

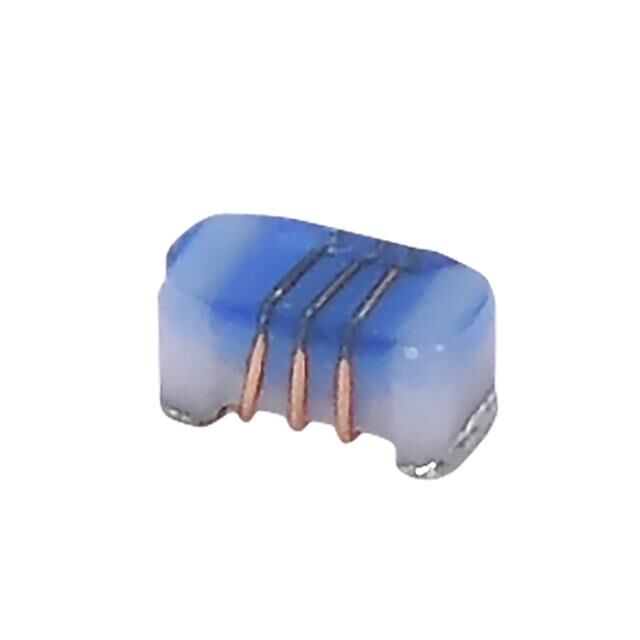

lmages are for reference only.FCBA1-0402F-13NJ
FIXED IND 13NH 640MA 0.21 MOHM
Datasheet0402 (1005 Metric)
76,082 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13 nH Unshielded Wirewound Inductor 640 mA 210mOhm Max 0402 (1005 Metric)
FCBA1-0402F-13NJ
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0402 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 13 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 640 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 210mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 3.45GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.028" W (1.19mm x 0.70mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FCBA1-0402F-10NJ | FCBA1-0402F-11NJ | FCBA1-0402F-12NJ | FCBA1-0402F-15NJ |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10NH 480MA 0.2 MOHM | FIXED IND 11NH 640MA 0.12 MOHM | FIXED IND 12NH 640MA 0.12 MOHM | FIXED IND 15NH 560MA 0.3 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
