Product CatalogPart Number
FCH125N60E
Manufacturer
onsemiDescription
MOSFET N-CH 600V 29A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
51,291 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FCH125N60E
FCH125N60E

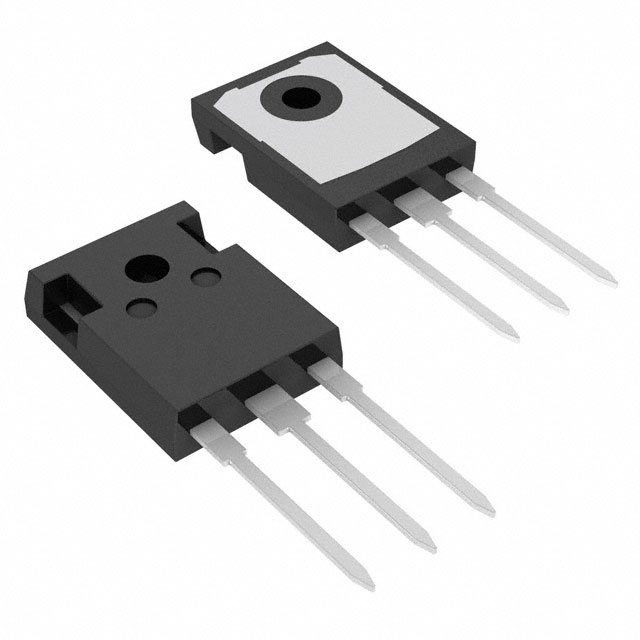

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 600 V 29A (Tc) 278W (Tc) Through Hole TO-247-3
Quick Inquiry
FCH125N60E
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | SuperFET® II |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 14.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2990 pF @ 380 V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | FCH125 |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | FCH125N65S3R0-F155 | FCH104N60 | FCH104N60F | FCH104N60F-F085 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 24A TO247-3 | MOSFET N-CH 600V 37A TO247-3 | MOSFET N-CH 600V 37A TO247-3 | MOSFET N-CH 600V 37A TO247-3 |
| Series | SuperFET® III | SuperFET® II | HiPerFET™, Polar™ | SuperFET® II |
| Packaging | Tube | Tube | Tube | Tube |
