Product CatalogPart Number
FCH47N60F-F085
Manufacturer
Fairchild SemiconductorDescription
N-CHANNEL MOSFET 600V, 47A
Datasheet
DatasheetPackage
TO-247-3
In Stock
43,013 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FCH47N60F-F085
FCH47N60F-F085

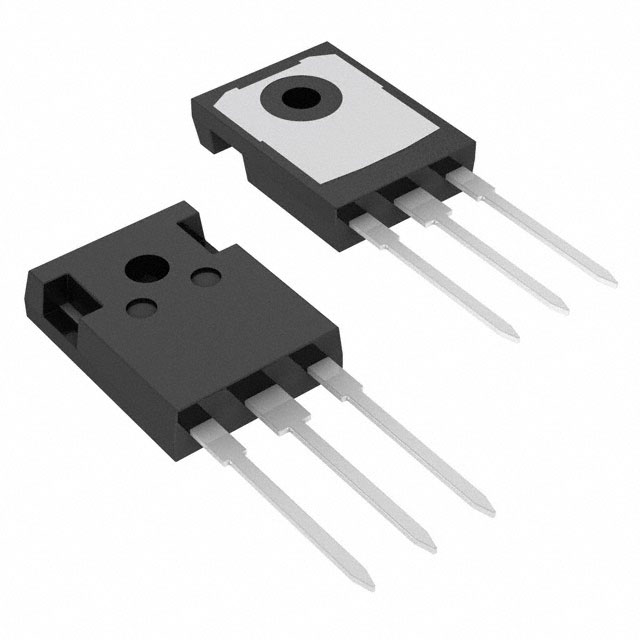

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 600 V 47A (Tc) 417W (Tc) Through Hole TO-247
Quick Inquiry
FCH47N60F-F085
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | SuperFET™ |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 47A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 8000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 417W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 250 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | FCH47N60F-F085 | FCH47N60F-F133 | FCH47N60 | FCH47N60-F085 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 600V 47A TO247-3 | MOSFET N-CH 600V 47A TO247-3 | MOSFET N-CH 600V 47A TO247-3 | MOSFET N-CH 600V 47A TO247-3 |
| Series | SuperFET™ | SuperFET™ | SuperFET™ | SuperFET™ |
| Packaging | Tube | Tube | Tube | Tube |
