FCN3022A394K
lmages are for reference only.FCN3022A394K
CAP FILM 0.39UF 10% 100VDC 3022
Datasheet3022 (7755 Metric)
87,612 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.39 µF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 3022 (7755 Metric)
FCN3022A394K
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | FCN |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.39 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 3022 (7755 Metric) |
| Size / Dimension | 0.303" L x 0.217" W (7.70mm x 5.50mm) |
| Height - Seated (Max) | 0.142" (3.60mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

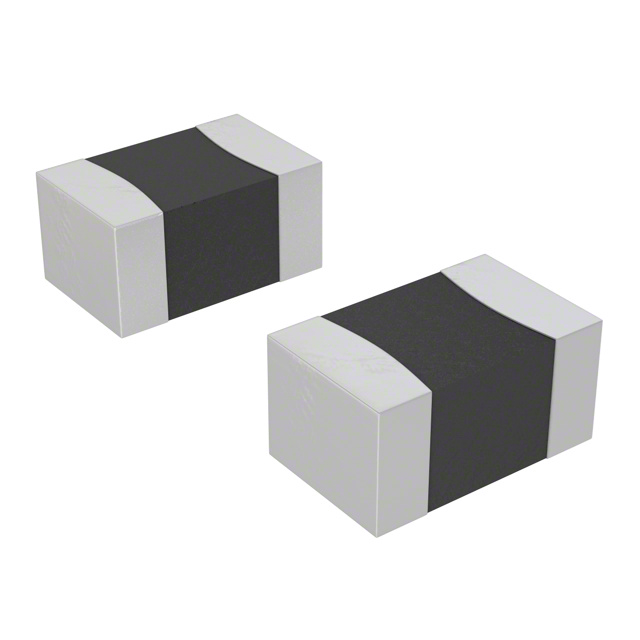

| Part Number | FCN3022A394K | FCN3022A394K-X | FCN3022A474K-X | FCA0805C104M |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.39UF 10% 100VDC 3022 | CAP FILM 0.39UF 10% 100VDC 3022 | CAP FILM 0.47UF 10% 100VDC 3022 | CAP FILM 0.1UF 20% 16VDC 0805 |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
