FCSL64R020FER
lmages are for reference only.Payment Methods
Delivery Services
20 mOhms ±1% 2W Chip Resistor Wide 2512 (6432 Metric), 1225 Current Sense Metal Foil
FCSL64R020FER
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Ohmite |
| Series | FCSL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 20 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 2W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

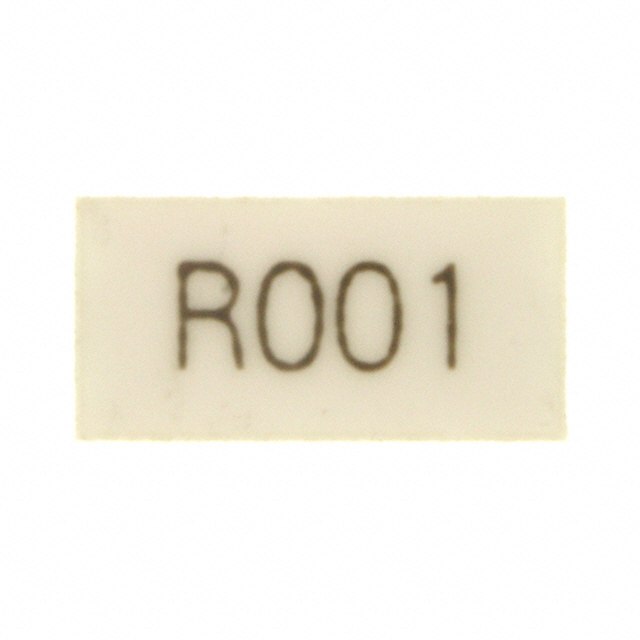

| Part Number | FCSL64R020DER | FCSL64R020FER | FCSL64R001JER | FCSL64R001JER |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | RES 0.02 OHM 0.5% 2W 2512 | RES SMD 20M OHM 1% 2W 2512 WIDE | RES 0.001 OHM 2W 2512 WIDE | RES 0.001 OHM 5% 2W 1225 |
| Series | Ohmite | Ohmite | Ohmite | Ohmite |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
