Product CatalogPart Number

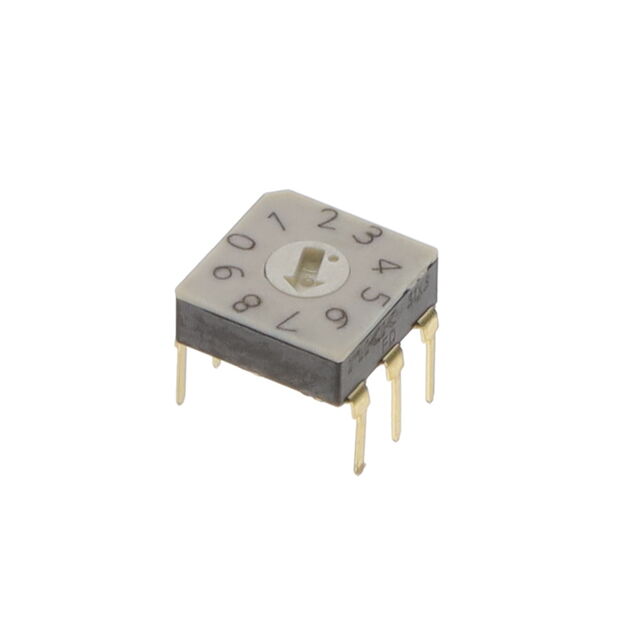

FD01FC10P-S
Manufacturer
NKK SwitchesDescription
SW ROTARY DIP BCD COMP 100MA 5V
Datasheet
DatasheetPackage
-
In Stock
63,997 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FD01FC10P-S
FD01FC10P-S
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch BCD Complement 10 Position Through Hole Rotary for Tool Actuator 0.4VA 20VAC/DC
Quick Inquiry
FD01FC10P-S
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | NKK Switches |
| Series | FD01 |
| Packaging | Tube |
| RoHS Status | |
| Circuit | BCD Complement |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush |
| Contact Material | Brass |
| Contact Finish | Gold |
| Height Above Board | 0.256" (6.50mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.283" (7.20mm) |
| Mechanical Life | 10,000 Cycles |
| Electrical Life | 10,000 Cycles |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | FD01FC10H | FD01FC10H-S | FD01FC10P | FD01FC16H |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | ULTRA-THIN DIP ROTARY | SW ROTARY DIP BCD COMP 100MA 5V | ULTRA-THIN DIP ROTARY | ULTRA-THIN DIP ROTARY |
| Series | FD01 | FD01 | FD01 | FD01 |
| Packaging | Box | Tube | Box | Box |
Customers Also Interested in
Recommended Products

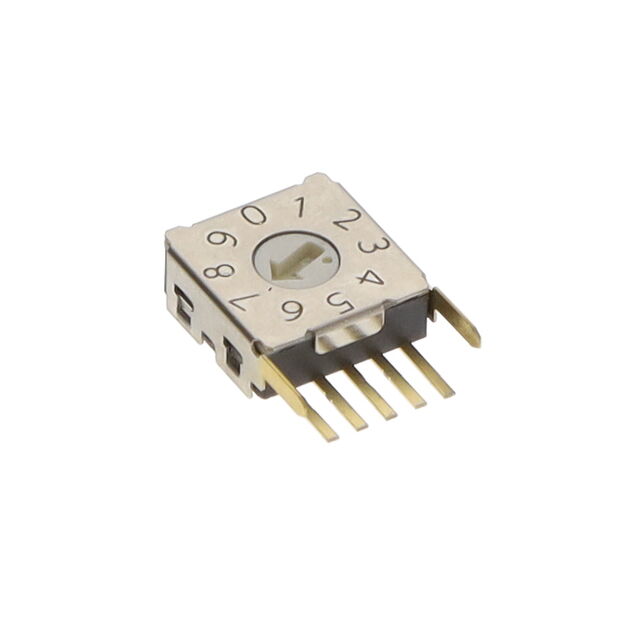

FD01FC10H
NKK Switches

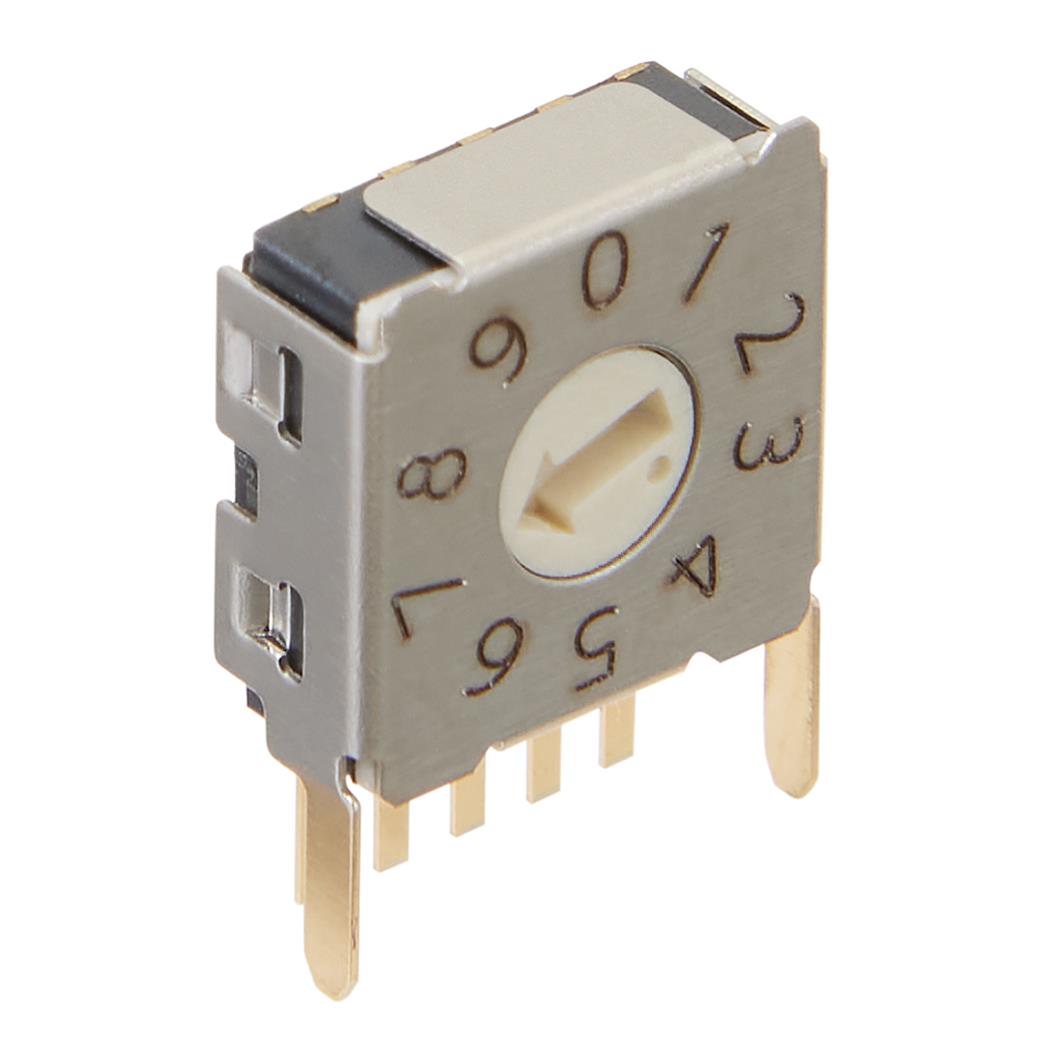

FD01FC10H-S
NKK Switches
FD01FC10P
NKK Switches

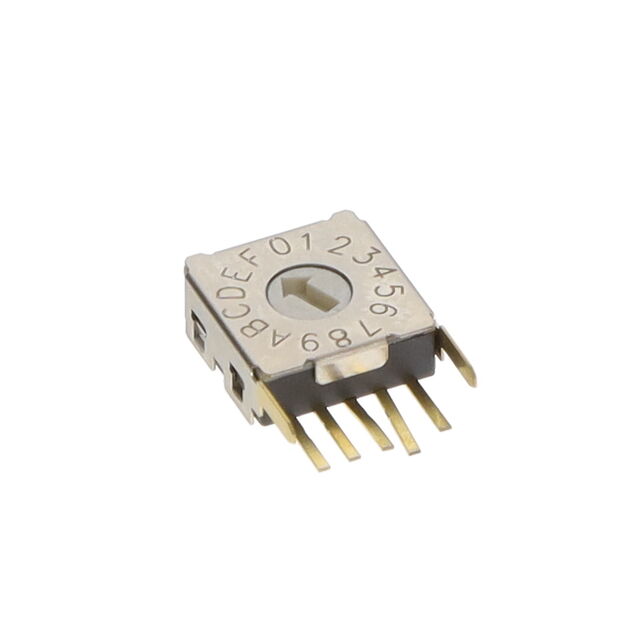

FD01FC16H
NKK Switches

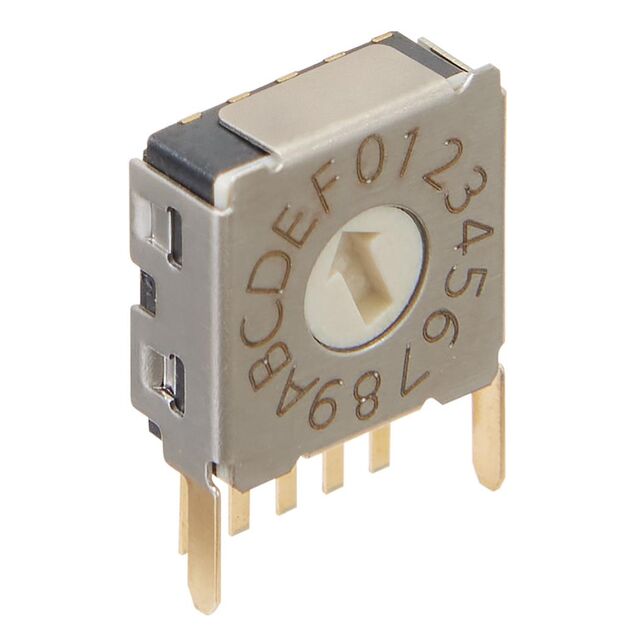

FD01FC16H-S
NKK Switches

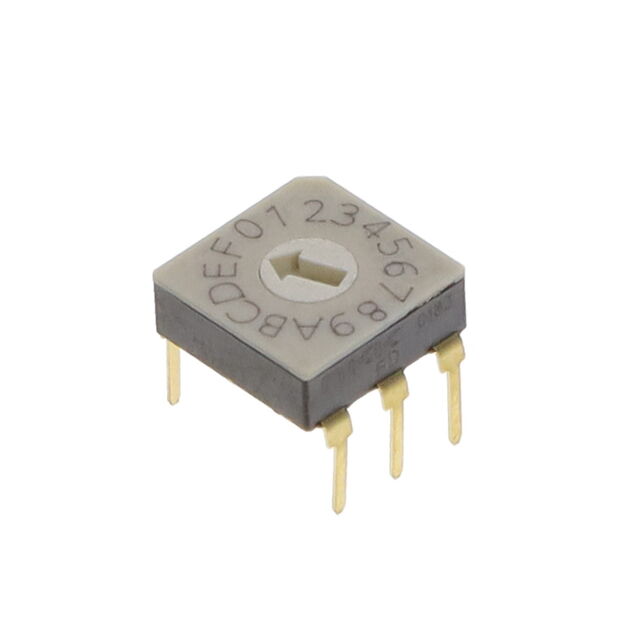

FD01FC16P
NKK Switches

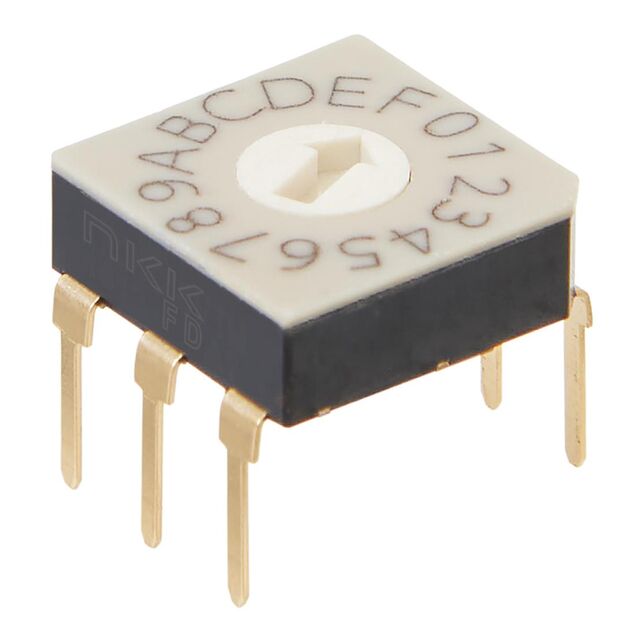

FD01FC16P-S
NKK Switches

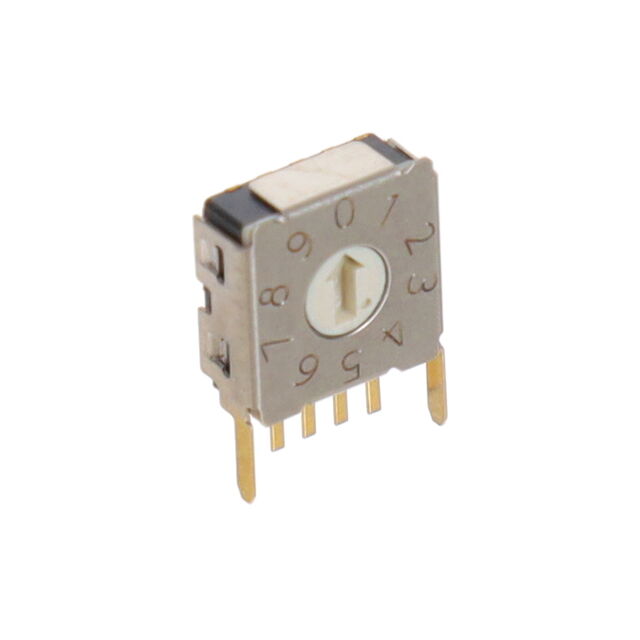

FD01FR10H
NKK Switches

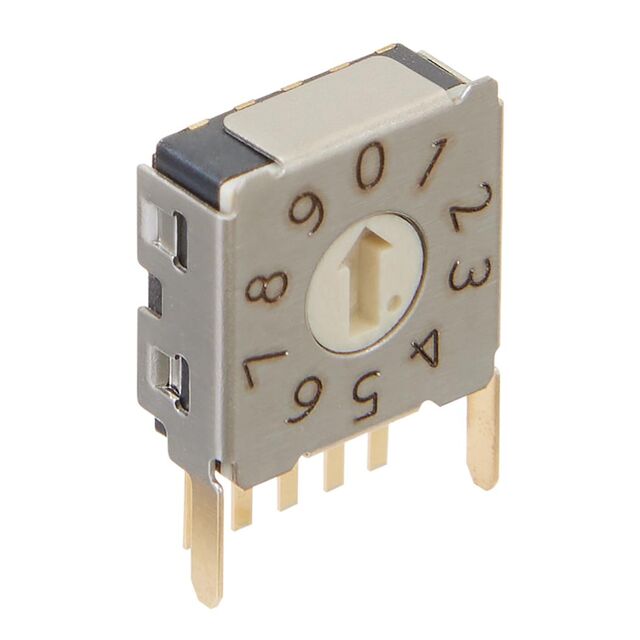

FD01FR10H-S
NKK Switches

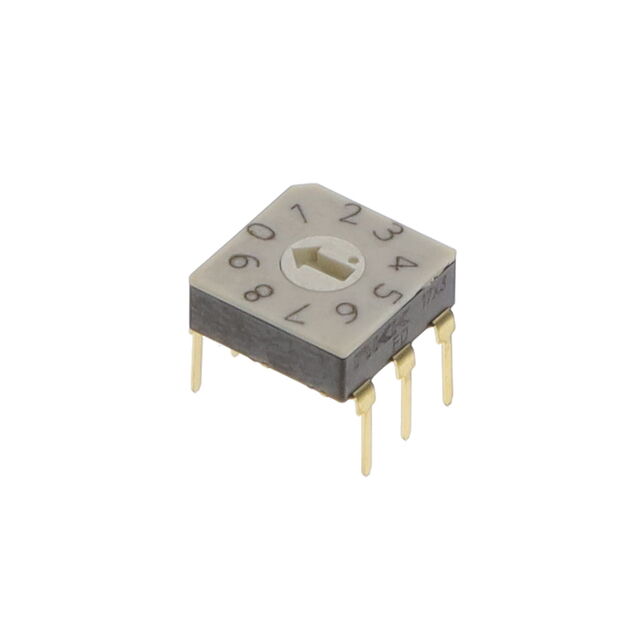

FD01FR10P
NKK Switches
FD01FR10P-S
NKK Switches

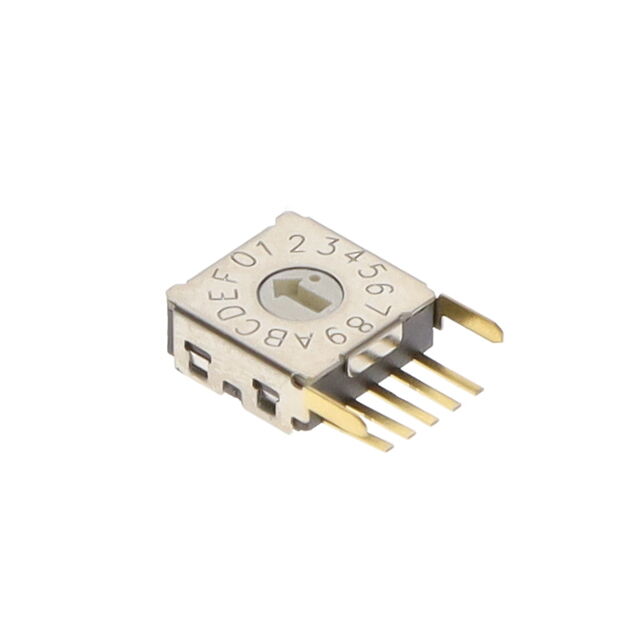

FD01FR16H
NKK Switches
FD01FR16H-S
NKK Switches

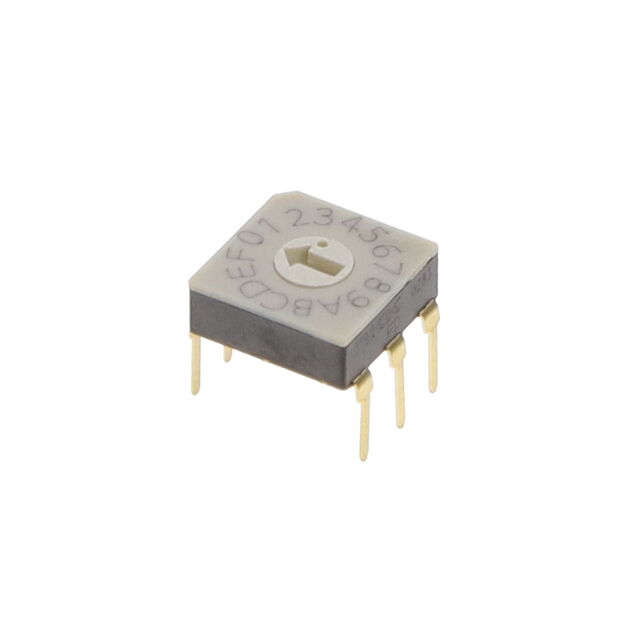

FD01FR16P
NKK Switches

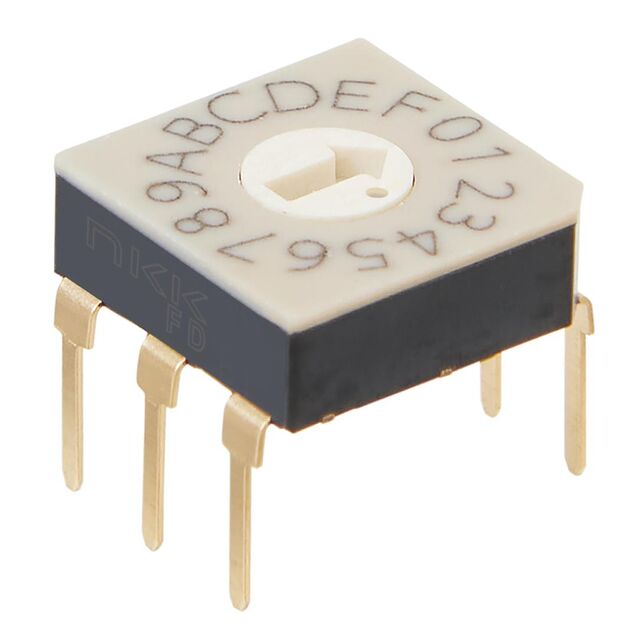

FD01FR16P-S
