Product CatalogPart Number
FD02KR10P
Manufacturer
NKK SwitchesDescription
ULTRA-THIN DIP ROTARY
Datasheet
DatasheetPackage
-
In Stock
61,943 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FD02KR10P
FD02KR10P
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch BCD Complement 10 Position Surface Mount Rotary with Shaft Actuator 0.4VA 20VAC/DC
Quick Inquiry
FD02KR10P
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | NKK Switches |
| Series | FD02 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Circuit | BCD Complement |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
| Contact Material | Brass |
| Contact Finish | Gold |
| Height Above Board | 0.283" (7.20mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.283" (7.20mm) |
| Mechanical Life | 10,000 Cycles |
| Electrical Life | 10,000 Cycles |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

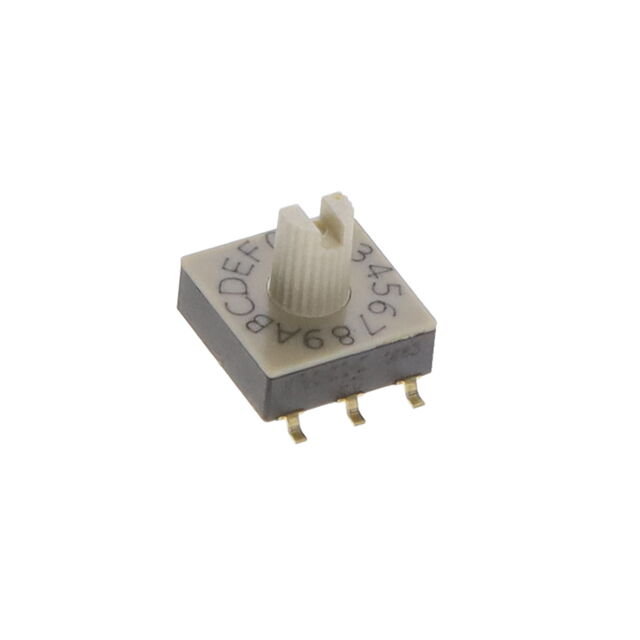

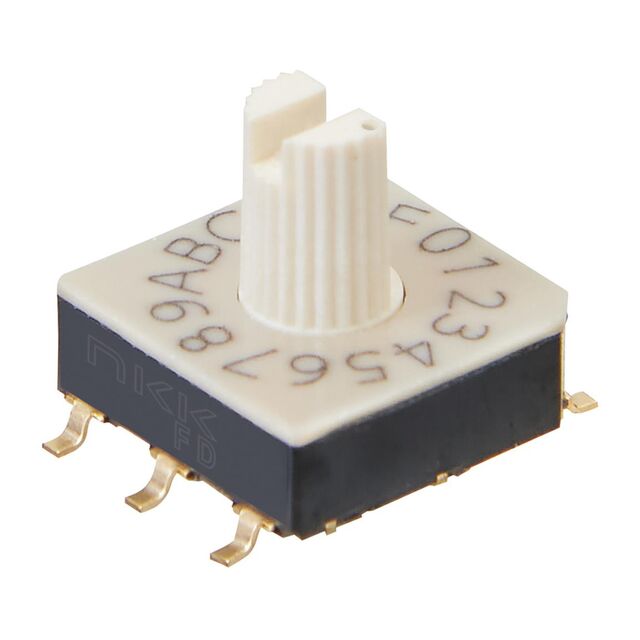

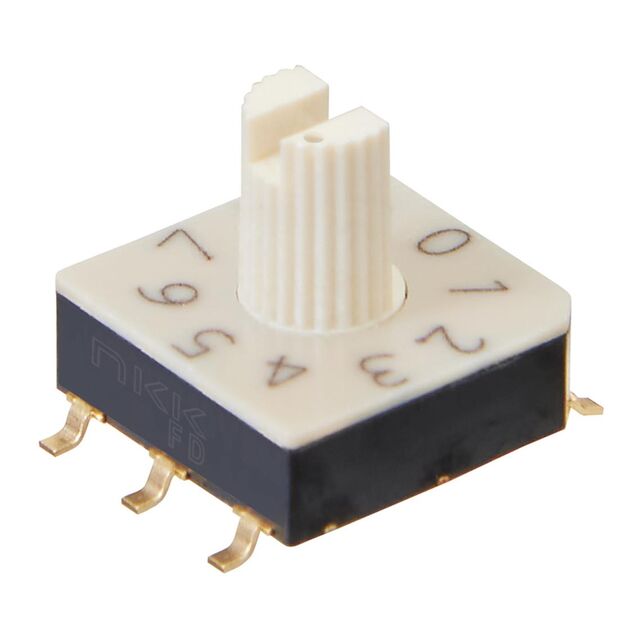

| Part Number | FD02KR10P-R | FD02KR10P-S | FD02KR16P | FD02KR16P-R |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| RoHS Status | ROHS3 Compliant | |||
| Description | SWITCH DIP | SW ROTARY DIP BCD COMP 100MA 5V | ULTRA-THIN DIP ROTARY | SW ROTARY DIP HEX COMP 100MA 5V |
| Series | FD02 | FD02 | FD02 | FD02 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Box | Tape & Reel (TR)-->Cut Tape (CT) |
