Product CatalogPart Number
FF800R12KL4CNOSA1
Manufacturer
Infineon TechnologiesDescription
IGBT MODULE 1200V 800A
Datasheet
DatasheetPackage
Module
In Stock
39,211 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FF800R12KL4CNOSA1
FF800R12KL4CNOSA1
lmages are for reference only.Payment Methods
Delivery Services
IGBT Module 2 Independent 1200 V 1250 A 5000 W Chassis Mount AG-PRIME2
Quick Inquiry
FF800R12KL4CNOSA1
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Infineon Technologies |
| Series | C |
| Packaging | Tray |
| RoHS Status | |
| IGBT Type | - |
| Configuration | 2 Independent |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 1250 A |
| Power - Max | 5000 W |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 800A |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 56 nF @ 25 V |
| Input | - |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | AG-PRIME2 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | FF800R12KE3NOSA1 | FF800R12KE7EHPSA1 | FF800R12KE7HPSA1 | FF800R12KE7PEHPSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

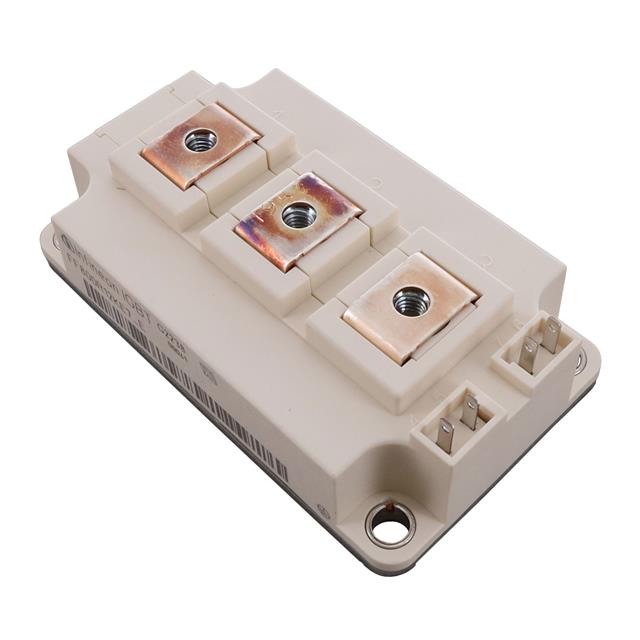

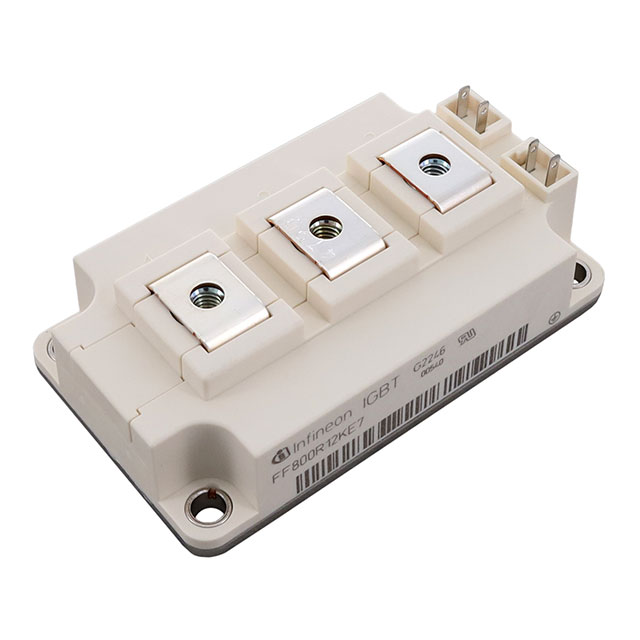

| Description | IGBT MOD 1200V 1200A 3900W | MEDIUM POWER 62MM | MEDIUM POWER 62MM AG-62MMHB-711 | MEDIUM POWER 62MM |
| Series | - | TRENCHSTOP™ | TrenchStop™ | - |
| Packaging | Bulk | Tray | Tray | Tray |
