FFA20U120DNTU

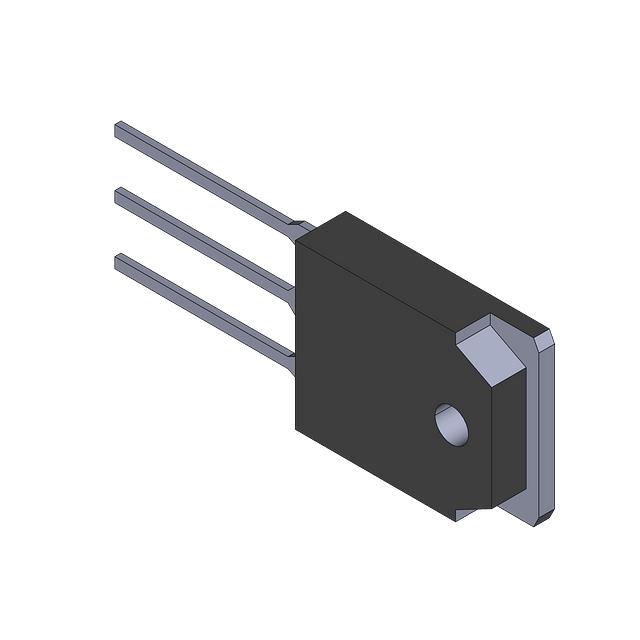

lmages are for reference only.FFA20U120DNTU
DIODE ARRAY GP 1200V 20A TO-3P
DatasheetTO-3P-3, SC-65-3
24,674 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 1200 V 20A Through Hole TO-3P-3, SC-65-3
FFA20U120DNTU
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 3.5 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 20 µA @ 1200 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P |
| Base Product Number | - |
| Reverse Recovery Time (trr) | 120 ns |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | FFA20U120DNTU | FFA05U120DNTU | FFA05U120DNTU | FFA10U120DNTU |
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE ARRAY GP 1200V 20A TO-3P | DIODE ARRAY GP 1200V 5A TO-3P | DIODE ARRAY GP 1200V 5A TO-3P | DIODE ARRAY GP 1200V 10A TO-3P |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
