FFSB20120A-F085
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 32A Surface Mount TO-263 (D2PAK)
FFSB20120A-F085
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 32A |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V |
| Capacitance @ Vr, F | 1220pF @ 1V, 100KHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | FFSB20120 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

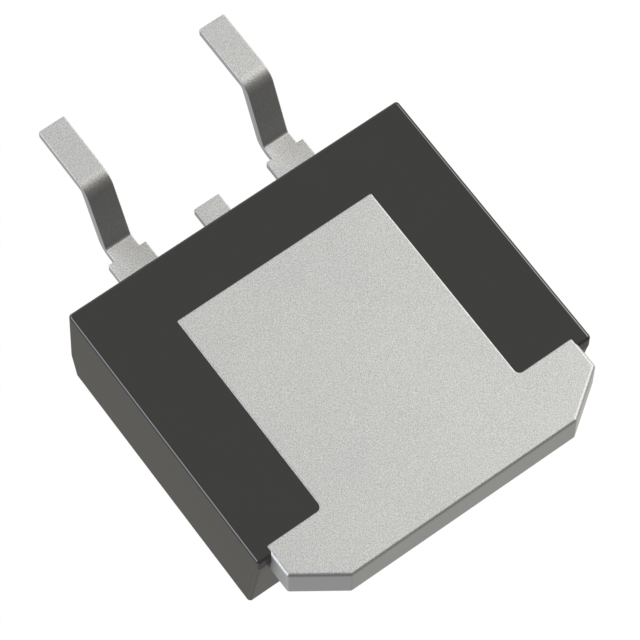

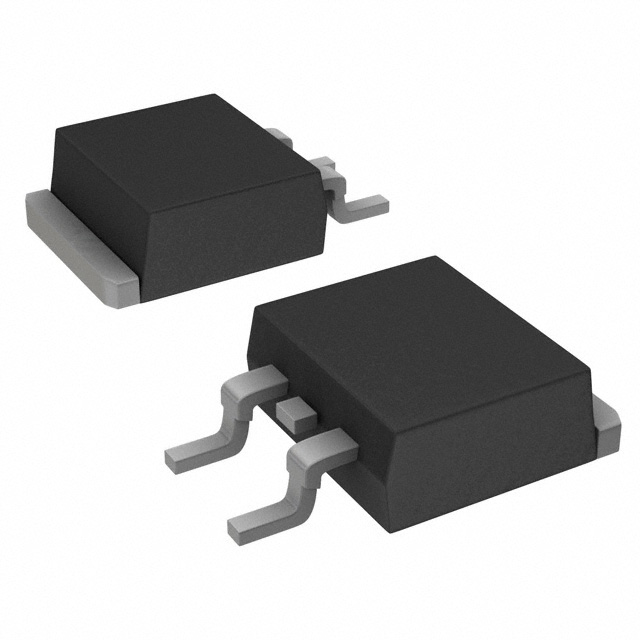

| Part Number | FFSB20120A | FFSB2065B | FFSB2065B-F085 | FFSB2065BDN-F085 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 1.2KV 32A D2PAK-3 | DIODE SIL CARB 650V 22.8A D2PAK | DIODE SIL CARB 650V 20A D2PAK-3 | DIODE SIC 650V 23.6A D2PAK-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
