Product CatalogPart Number
FGH80N60FD2TU
Manufacturer
onsemiDescription
IGBT FIELD STOP 600V 80A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
78,291 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FGH80N60FD2TU
FGH80N60FD2TU
lmages are for reference only.Payment Methods
Delivery Services
IGBT Field Stop 600 V 80 A 290 W Through Hole TO-247-3
Quick Inquiry
FGH80N60FD2TU
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 290 W |
| Switching Energy | 1mJ (on), 520µJ (off) |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | 21ns/126ns |
| Test Condition | 400V, 40A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Reverse Recovery Time (trr) | 61 ns |
| Base Product Number | FGH80 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

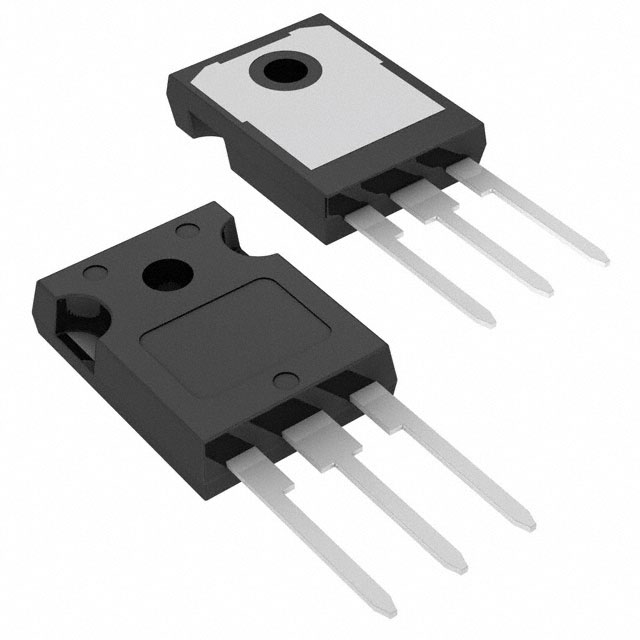

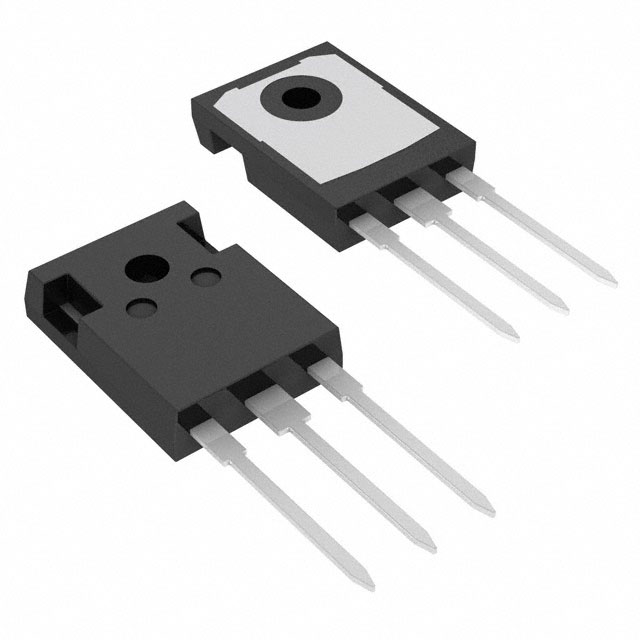

| Part Number | FGH80N60FDTU | FGH12040WD-F155 | FGH15T120SMD-F155 | FGH20N60SFDTU |
