FH52-60(30)SB-1SH(99)
lmages are for reference only.FH52-60(30)SB-1SH(99)
CONN FFC FPC BOTTOM 60POS 1MM RA
Datasheet-
59,977 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60 (30 Loaded) Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
FH52-60(30)SB-1SH(99)
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH52 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 60 (30 Loaded) |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 1.25µin (0.03µm) |
| Housing Color | Gray |
| Actuator Color | Black |
| Mating Cycles | 20 |
| Base Product Number | FH52 |
| Product Attribute | |
 |
|
.jpg "FH52-60S-0.5SH(99)") |
| Part Number | FH52-60(30)SB-1SH | FH52-60S-0.5SH | FH52-60S-0.5SH(15) | FH52-60S-0.5SH(99) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |

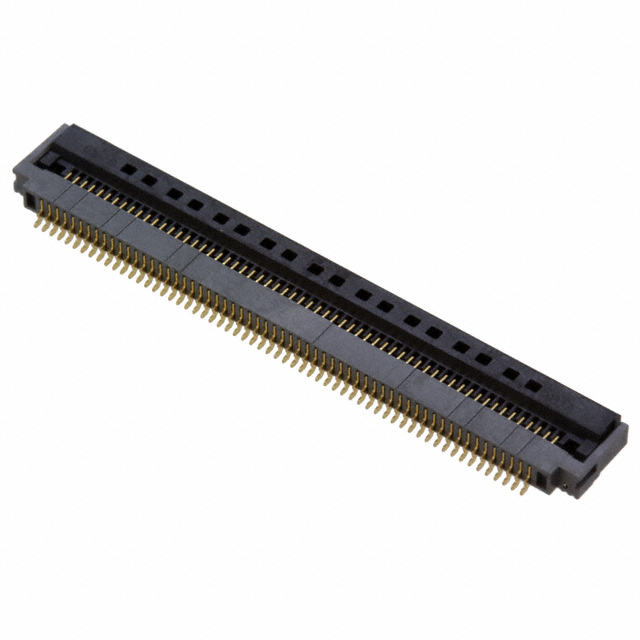

| Description | CONN FFC FPC BOTTOM 60POS 1MM RA | CONN FFC BOTTOM 60POS 0.5MM R/A | CONN FFC BOTTOM 60POS 0.5MM R/A | CONN FFC BOTTOM 60POS 0.5MM R/A |
| Series | FH52 | FH52 | FH52 | FH52 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products
SA-1SH.jpg "FH52-10(4)SA-1SH")

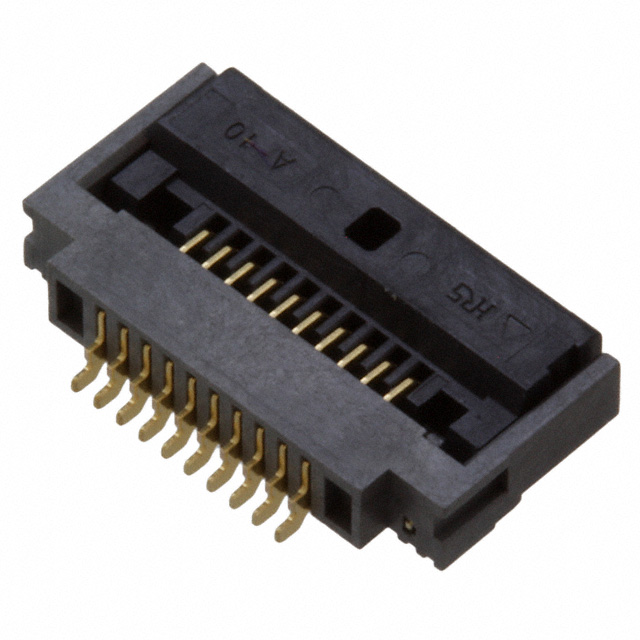

.jpg "FH52-10S-0.5SH(99)")

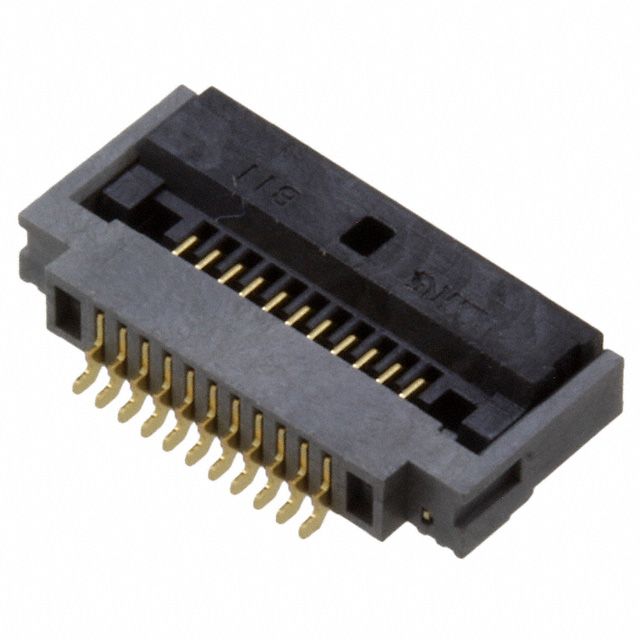

.jpg "FH52-11S-0.5SH(99)")

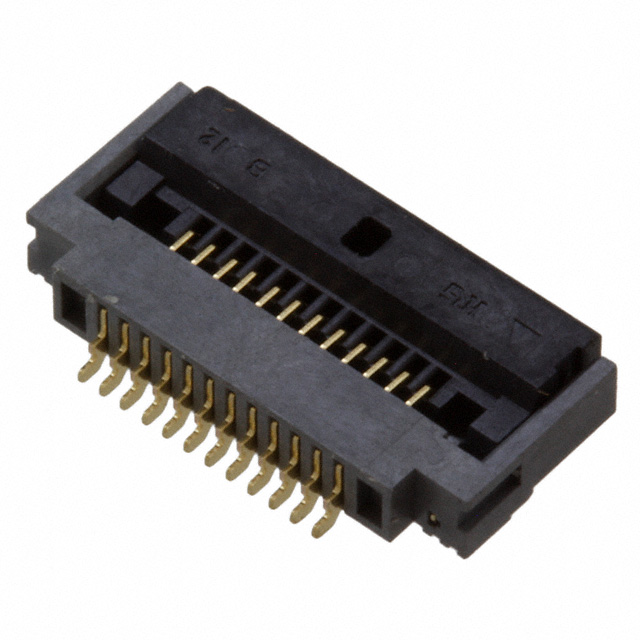

.jpg "FH52-12S-0.5SH(99)")

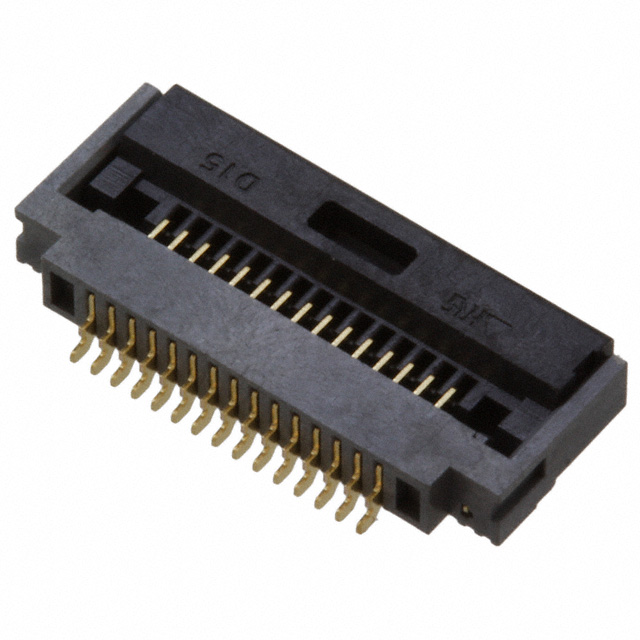

.jpg "FH52-15S-0.5SH(99)")

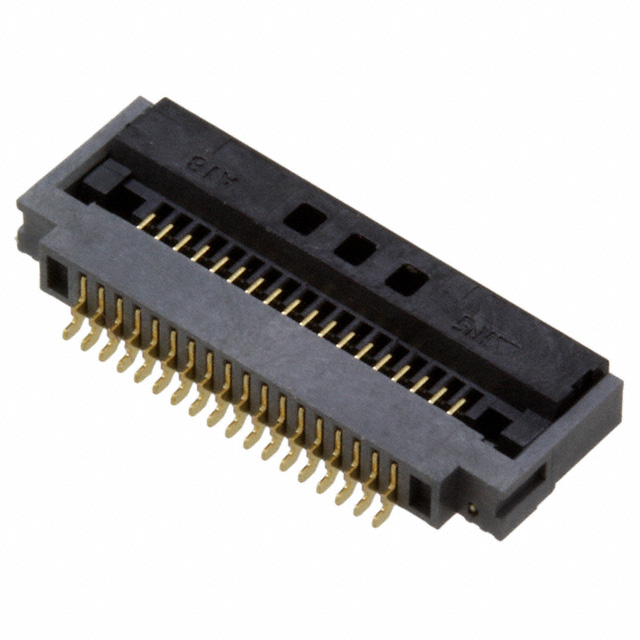

.jpg "FH52-18S-0.5SH(99)")

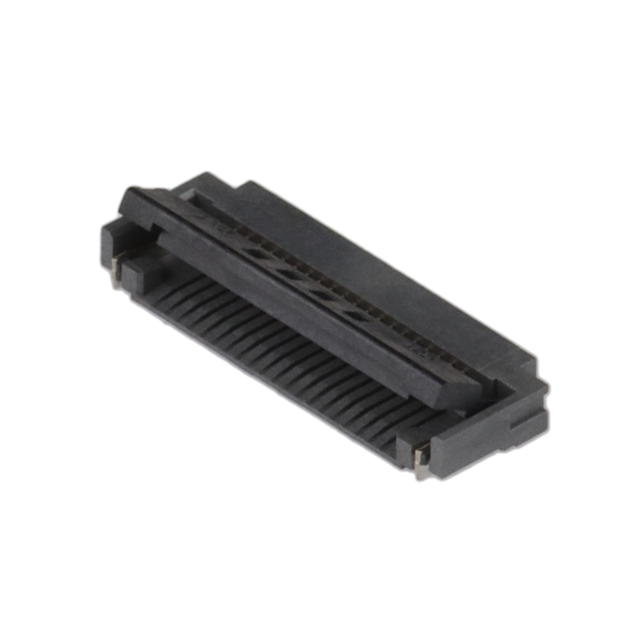

.jpg "FH52-20S-0.5SH(99)")
