FIT106-5

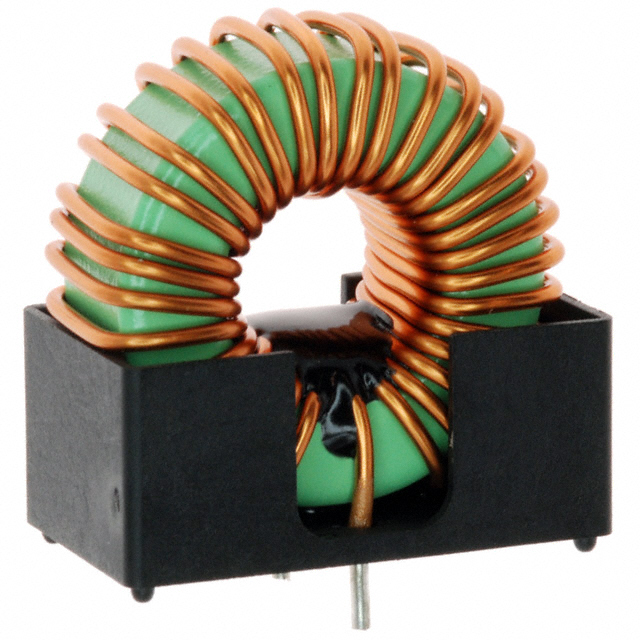

lmages are for reference only.FIT106-5
FIXED IND 93UH 8.1A 39.1 MOHM TH
DatasheetRadial, Vertical (Open)
12,351 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
93 µH Unshielded Toroidal Inductor 8.1 A 39.1mOhm Max Radial, Vertical (Open)
FIT106-5
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Triad Magnetics |
| Series | FIT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 93 µH |
| Tolerance | - |
| Current Rating (Amps) | 8.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 39.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.300" L x 0.725" W (33.02mm x 18.42mm) |
| Height - Seated (Max) | 1.400" (35.56mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | FIT106-1 | FIT106-1-B | FIT106-2 | FIT106-2 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 253UH 4A 139 MOHM TH | FIXED IND 253UH 4A 139 MOHM TH | FIXED IND 197UH 4.8A 106 MOHM TH | FIXED IND 197UH 4.8A 106 MOHM TH |
| Series | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
