FL2D-80-102

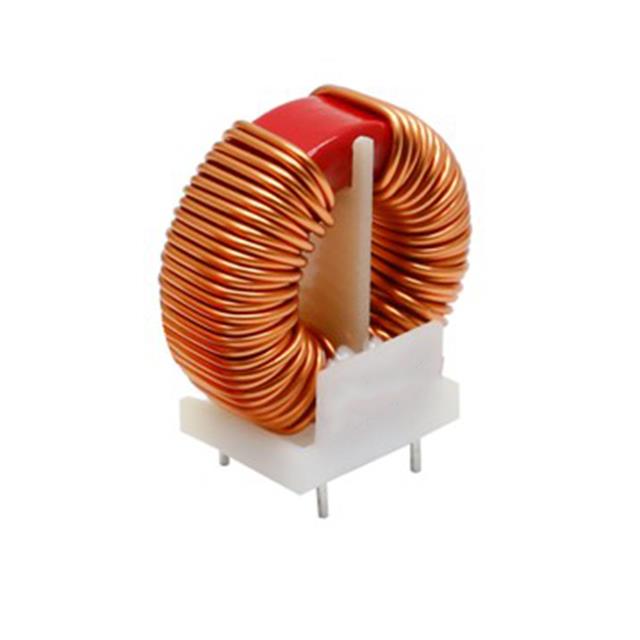

lmages are for reference only.FL2D-80-102
COMMON MODE FILTER 1000H 8A 30M
DatasheetVertical, 4 PC Pin
45,122 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 8A DCR 30mOhm (Typ)
FL2D-80-102
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Mornsun America, LLC |
| Series | FL2D-80-xxx |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 1 mH @ 1 kHz |
| Current Rating (Max) | 8A |
| DC Resistance (DCR) (Max) | 30mOhm (Typ) |
| Voltage Rating - DC | 2000V (2kV) |
| Voltage Rating - AC | 1500V (1.5kV) |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.906" L x 0.520" W (23.00mm x 13.20mm) |
| Height (Max) | 0.906" (23.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FL2D-80-332 | FL2D-80-562 | FL2D-10-102 | FL2D-10-102B |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | COMMON MODE FILTER 3300H 8A 30M | 5.6MH @ 1 KHZ 2 LINE COMMON MODE | 1MH 2 LINE COMMON MODE CHOKE THR | 1MH @ 10 KHZ 2 LINE COMMON MODE |
| Series | FL2D-80-xxx | FL2D-80-xxx | FL2D-xx-xxx | FL2D-10-xxxB |
| Packaging | Tray | Tray | Tray | Tray |
