Product CatalogPart Number
FM20C04VBNN
Manufacturer
METZ CONNECT USA Inc.Description
RECEPTACLE, SMT, SINGLE ROW, 2.0
Datasheet
DatasheetPackage
-
In Stock
11,197 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FM20C04VBNN
FM20C04VBNN
lmages are for reference only.Payment Methods
Delivery Services
4 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Quick Inquiry
FM20C04VBNN
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
| Base Product Number | FM20C04VB |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

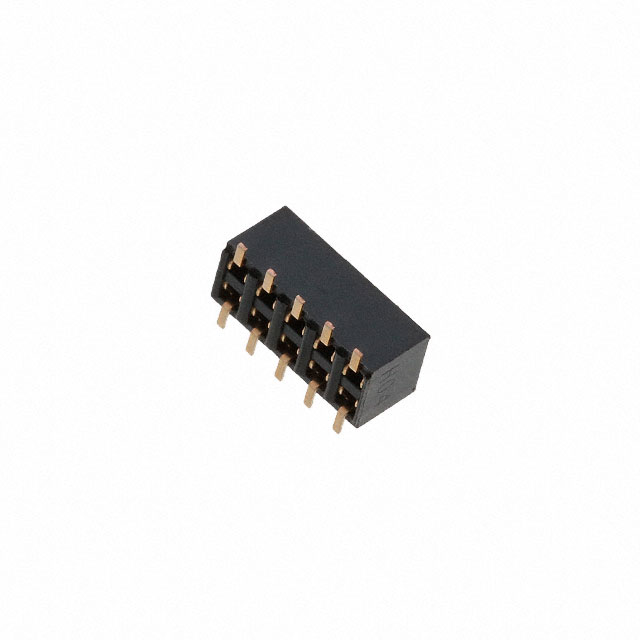

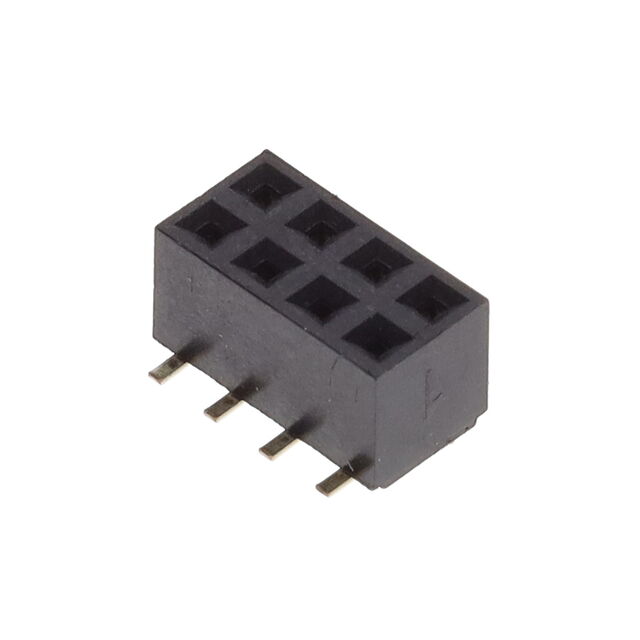

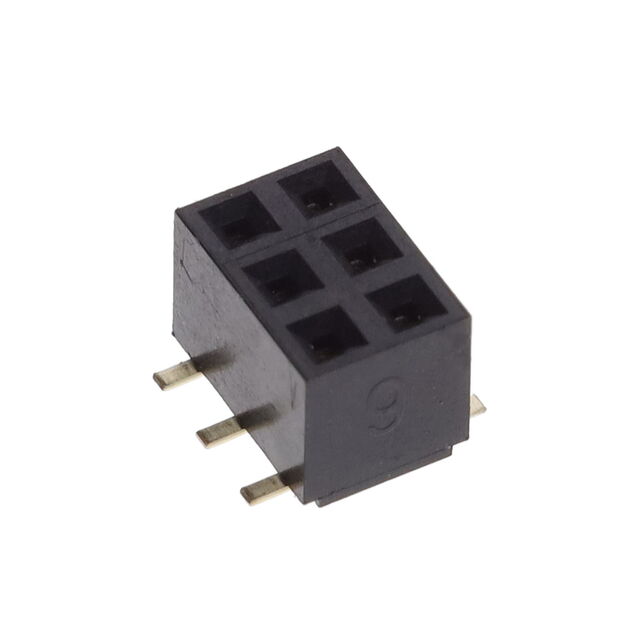

| Part Number | FM20C04VBDN00G7 | FM20C03VBDN00G7 | FM20C05VBDN00G7 | FM20C06VBNN |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | RECEPTACLE, SMT, DUAL ROW, 2.00 | RECEPTACLE, SMT, DUAL ROW, 2.00 | CONN RCPT 10POS 0.079 SMD | CONN RCPT 6POS 0.079 SMD |
| Series | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
