FMAM5101F
lmages are for reference only.FMAM5101F
TEMP COMP AMP SMA 0.5-4 GHZ 21DB
DatasheetModule, SMA Connectors
52,519 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC General Purpose 500MHz ~ 4GHz
FMAM5101F
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Fairview Microwave |
| Series | - |
| Packaging | Bag |
| RoHS Status | |
| Frequency | 500MHz ~ 4GHz |
| P1dB | 21dBm |
| Gain | 39dB |
| Noise Figure | 3dB |
| RF Type | General Purpose |
| Voltage - Supply | 12V ~ 15V |
| Current - Supply | 350mA |
| Test Frequency | - |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

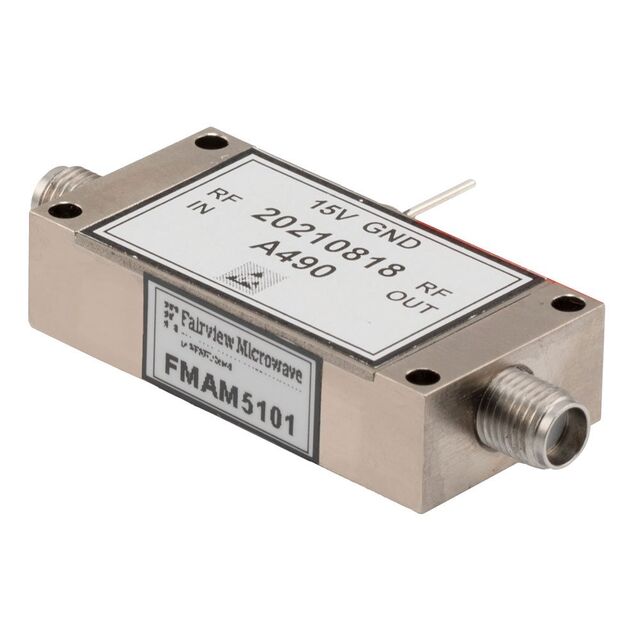

| Part Number | FMAM5101 | FMAM5104 | FMAM5104F | FMAM5105 |
| Manufacturer | Fairview Microwave | Fairview Microwave | Fairview Microwave | Fairview Microwave |
| RoHS Status | ||||

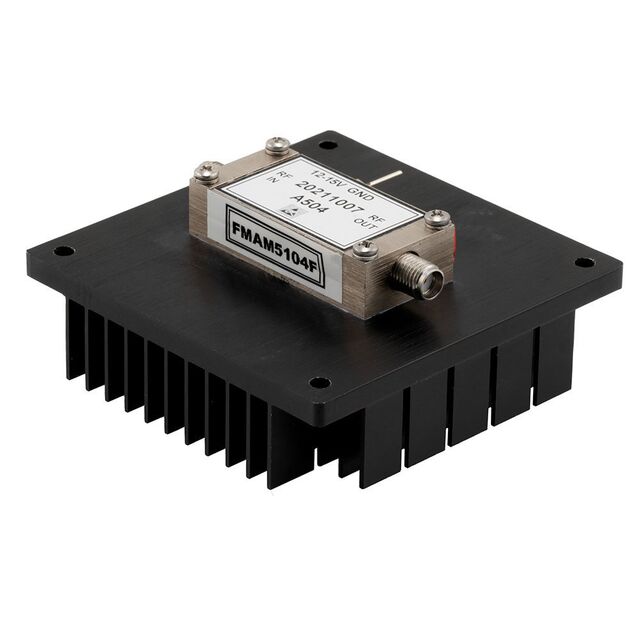

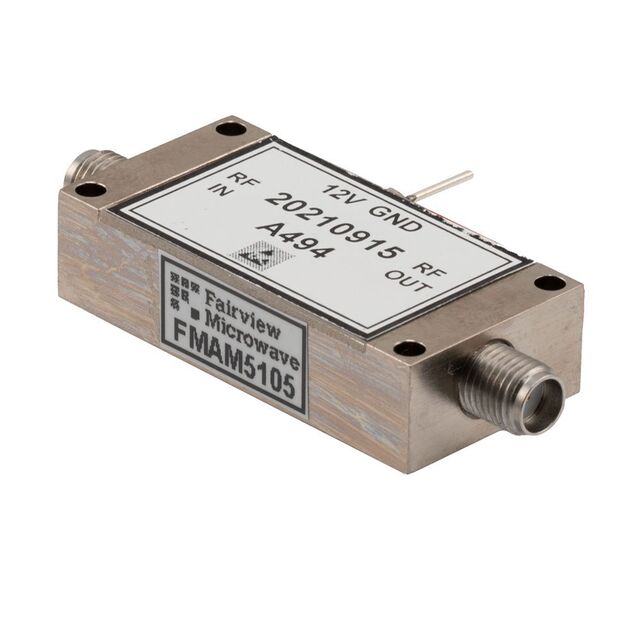

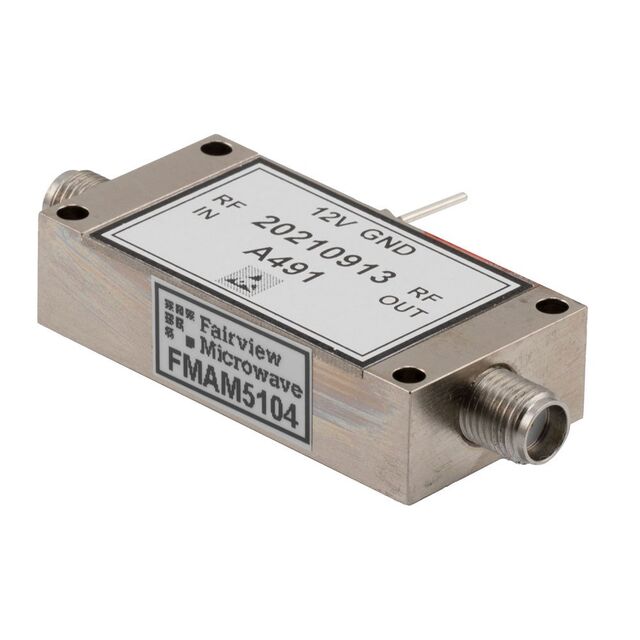

| Description | TEMP COMP AMP SMA 0.5-4 GHZ 21DB | TEMP COMP AMP SMA 2-8 GHZ 22DBM | TEMP COMP AMP SMA 2-8 GHZ 22DBM | TEMP COMP AMP SMA 4-12 GHZ 22DBM |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag |
