FN7561-63-M6

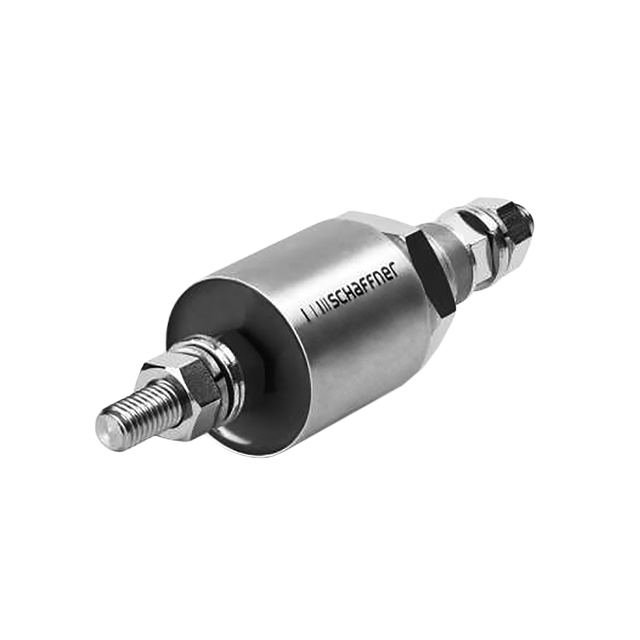

lmages are for reference only.FN7561-63-M6
FEED THROUGH FILTER 130VDC/130VA
DatasheetAxial - Threaded Terminals
21,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.047 µF Feed Through Capacitor 650V 63 A 0.3mOhm (Typ) Axial - Threaded Terminals
FN7561-63-M6
| Category | Filters - Feed Through Capacitors - |
| Manufacturer | Schaffner EMC Inc. |
| Series | FN 756X |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Tolerance | ±20% |
| Voltage - Rated | 650V |
| Current | 63 A |
| DC Resistance (DCR) (Max) | 0.3mOhm (Typ) |
| Operating Temperature | -40°C ~ 100°C |
| Insertion Loss | - |
| Temperature Coefficient | - |
| Ratings | Y4 |
| Package / Case | Axial - Threaded Terminals |
| Size / Dimension | 0.984" Dia x 3.780" L (25.00mm x 96.00mm) |
| Height (Max) | - |
| Thread Size | - |
| Capacitance | 0.047 µF |
| Mounting Type | Bolt Mount |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | FN7510-20-M4 | FN7511-16-M4 | FN7511-200-M10 | FN7511-32-M4 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 0 | FEED THROUGH FILTER 300VAC, 16A, | FEED THROUGH FILTER 300VAC, 200A | FEED THROUGH FILTER 300VAC, 32A, |
| Series | FN 751X | FN 751X | FN 751X | FN 751X |
| Packaging | Bulk | Bulk | Bulk | Bulk |
