FOD8342ATR2V

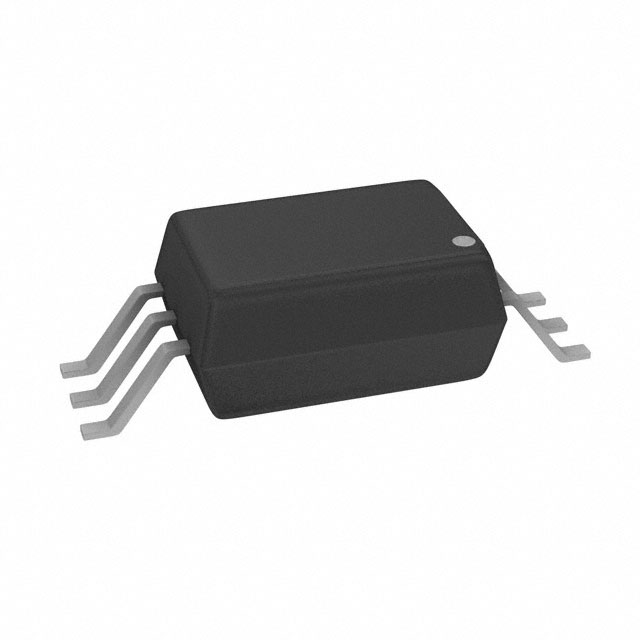

lmages are for reference only.Payment Methods
Delivery Services
3A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SOP
FOD8342ATR2V
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 210ns, 210ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 38ns, 24ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Voltage - Output Supply | 10V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SOP |
| Approval Agency | UL, VDE |
| Base Product Number | FOD8342 |
| Current - DC Forward (If) (Max) | 25 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | FOD8342AT | FOD8342ATR2 | FOD8342ATV | FOD8342 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SO6 2.5A GD WL | OPTOISO 5KV 1CH GATE DVR 6SOP | OPTOISO 5KV 1CH GATE DVR 6SOP | OPTOISO 5KV 1CH GATE DVR 6SOP |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
