FQA65N20

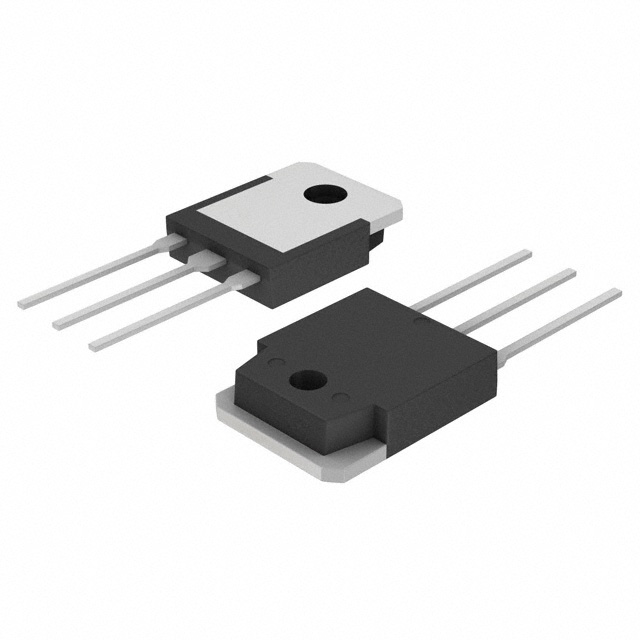

lmages are for reference only.FQA65N20
MOSFET N-CH 200V 65A TO-3P
DatasheetTO-3P-3, SC-65-3
48,861 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 200 V 65A (Tc) 310W (Tc) Through Hole TO-3PN
FQA65N20
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild/ON Semiconductor |
| Series | QFET® |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 32.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 7900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 310W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3PN |
| Package / Case | TO-3P-3, SC-65-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | FQA65N06 | FQA65N20 | FQA10N60C | FQA10N60C |
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 60V 72A TO3P | MOSFET N-CH 200V 65A TO3PN | MOSFET N-CH 600V 10A TO3P | MOSFET N-CH 600V 10A TO3P |
| Series | QFET® | QFET® | QFET® | QFET® |
| Packaging | Tube | Tube | Tube | Tube |
