FSM6JSMAASTR
lmages are for reference only.FSM6JSMAASTR
SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet-
32,574 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
FSM6JSMAASTR
| Category | Switches - Tactile Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | FSMJSMA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 7.00mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Outline | 6.00mm x 6.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 260gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Actuator Material | Polyamide (PA), Nylon |
| Switch Travel | 0.25mm |
| Mechanical Life | 1,000,000 Cycles |
| Base Product Number | FSM6 |
| Product Attribute |  |
 |
 |
 |

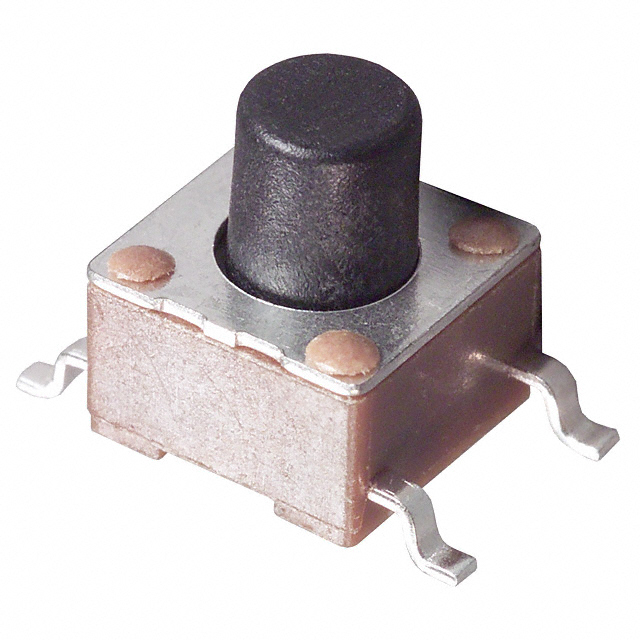

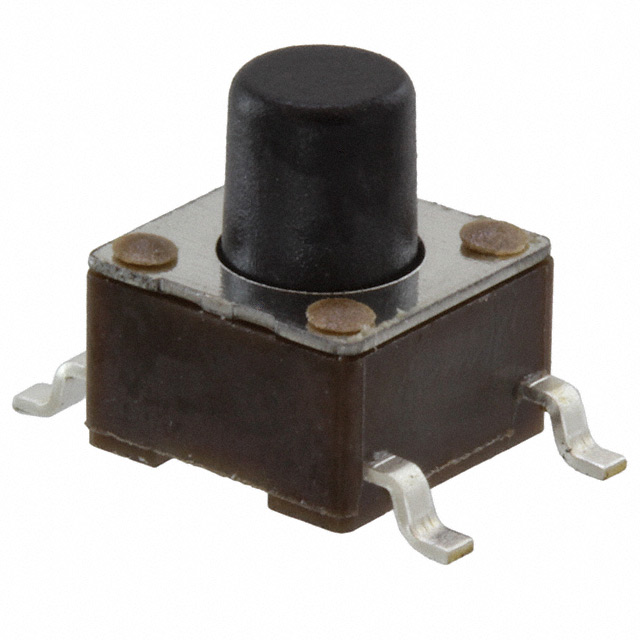

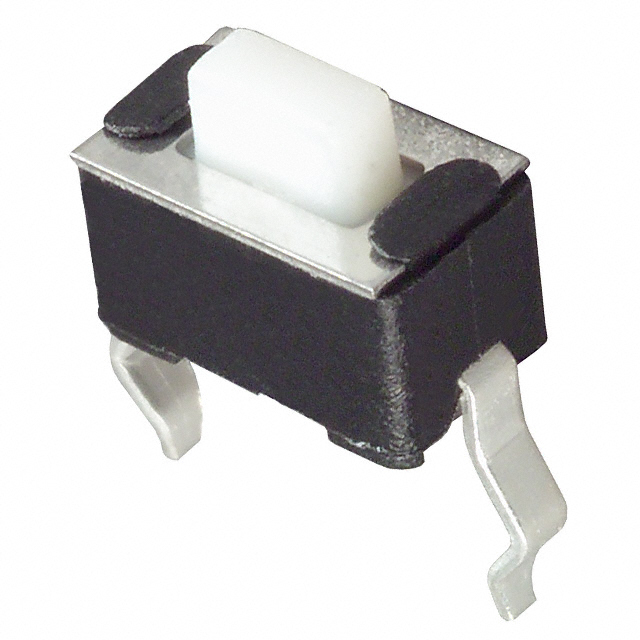

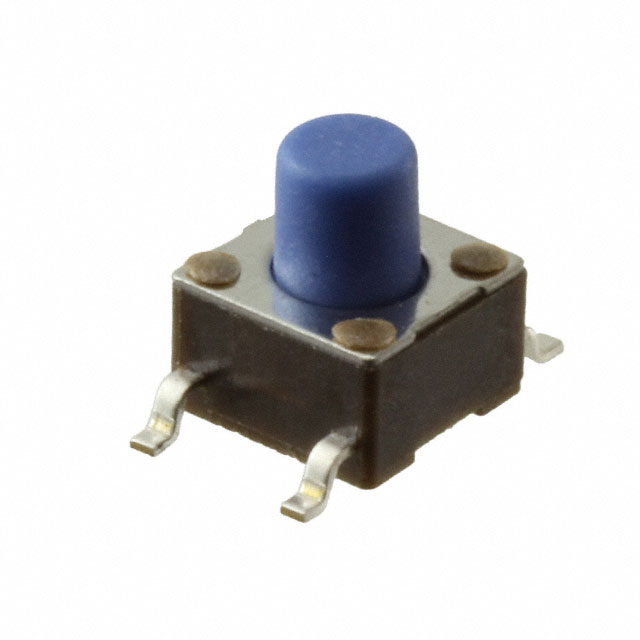

| Part Number | FSM6JSMA | FSM6JSMATR | FSM6JSMLSTR | FSM |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 12V |
| Series | FSMJSMA | FSMJSMA | FSMJSML | FSM |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk |
