FWE-100A
lmages are for reference only.FWE-100A
1000VDC IEC/UL 100A AR 25MM ROUN
DatasheetCylindrical, Blade Terminal (Bolt)
72,744 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 A AC 1 kV DC Fuse Cartridge, Ceramic Bolt Mount Cylindrical, Blade Terminal (Bolt)
FWE-100A
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | FWE |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 100 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1 kV |
| Response Time | Fast Blow |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Breaking Capacity @ Rated Voltage | 50kA |
| Melting I²t | 1820.0 |
| Approval Agency | CCC, CE, cURus, UKCA |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 1.000" Dia x 2.843" L (25.40mm x 72.20mm) |
| Base Product Number | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FWE-125A | FWE-150A | FWE-175A | FWE-200A |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | ||||

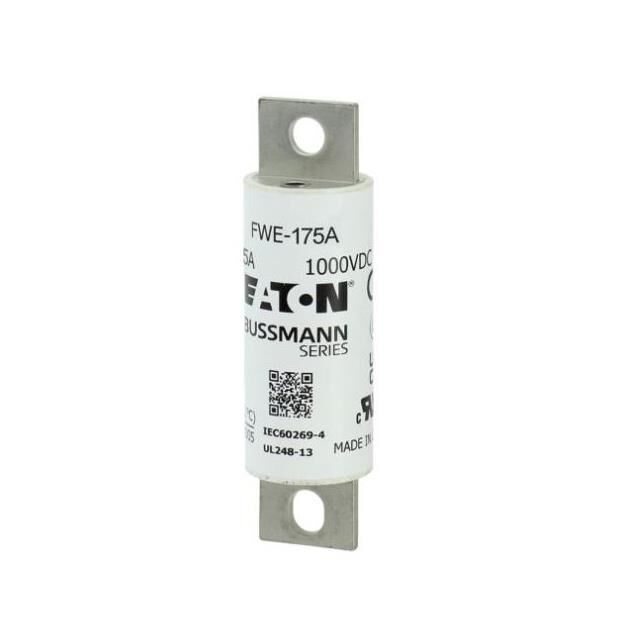

| Description | 1000VDC IEC/UL 125A AR 30MM ROUN | 1000VDC IEC/UL 150A AR 30MM ROU | 1000VDC IEC/UL 175A AR 30MM ROUN | 1000VDC IEC/UL 200A AR 30MM ROUN |
| Series | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
