G05NP06S2
lmages are for reference only.G05NP06S2
MOSFET N/P-CH 60V 5A 8SOP
Datasheet8-SOIC (0.154", 3.90mm Width)
44,579 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 60V 5A (Tc), 3.1A (Tc) 2.5W (Tc), 1.9W (Tc) Surface Mount 8-SOP
G05NP06S2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc), 3.1A (Tc) |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 4.3A, 10V, 80mOhm @ 3.1A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA, 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22nC @ 10V, 37nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1336pF @ 30V, 1454pF @ 30V |
| Power - Max | 2.5W (Tc), 1.9W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | G05N |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
.jpg "TPC8211(TE12L,Q,M)") |

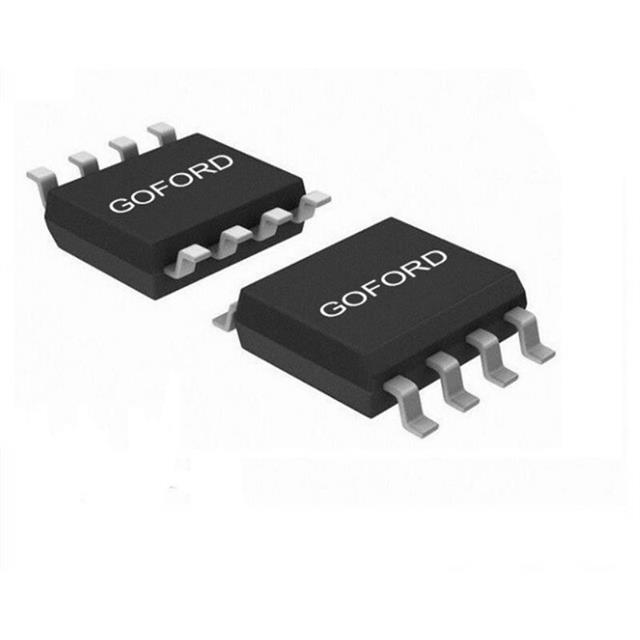

| Part Number | G05N06S2 | G05NP04S | G05NP10S | TPC8211(TE12L,Q,M) |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | MOSFET 2N-CH 60V 5A 8SOP | MOSFET 40V 4.5A 8SOP | MOSFET 100V 5A/6A 8SOP | MOSFET 2N-CH 30V 5.5A 8SOP |
| Series | TrenchFET® | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
