G2409WS-1WR3
lmages are for reference only.G2409WS-1WR3
ISOLATED MODULE DC DC CONVERTER1
Datasheet9-SIP Module, 5 Leads
60,923 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 21.6V - 26.4V Input
G2409WS-1WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 56mA, 56mA |
| Power (Watts) | 1.008 W |
| Applications | ITE (Commercial), Medical |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 75% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 6 kV |
| Product Attribute |  |
 |
|
 |

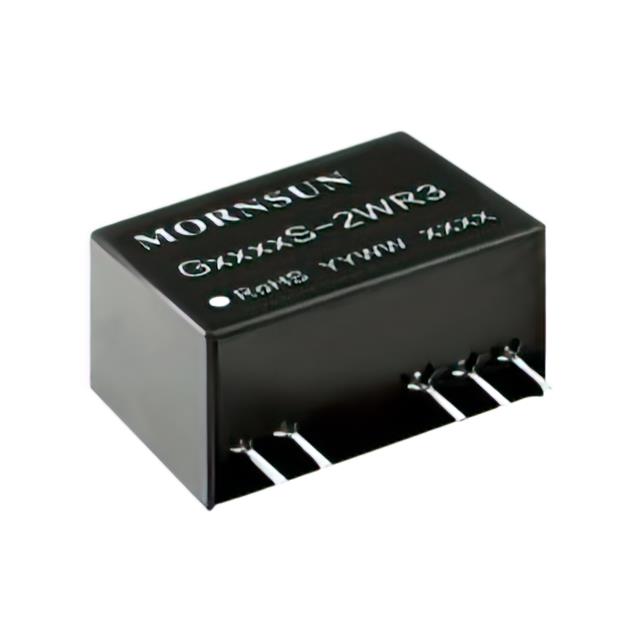

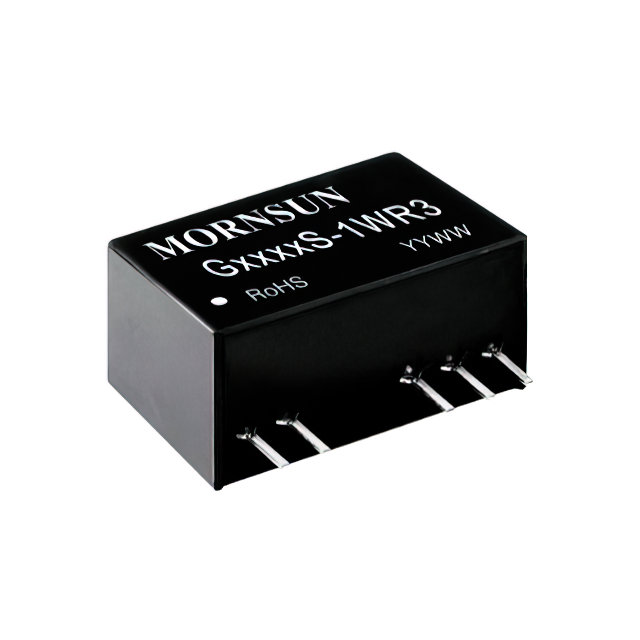

| Part Number | G2409WS-2WR3 | G2405S-1WR3 | G2405S-1WR3 | G2405S-2WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER2 | ISOLATED MODULE DC DC CONVERTER2 | ISOLATED MODULE DC DC CONVERTER2 | ISOLATED MODULE DC DC CONVERTER2 |
| Series | ||||
| Packaging | G_WS-2WR3 (2W) | G_S-1WR3 (1W) | G_S-1WR3 (1W) | G_S-2WR3 (2W) |
