G2R-1-SNI DC24(S)
lmages are for reference only.G2R-1-SNI DC24(S)
RELAY GEN PURPOSE SPDT 10A 24V
Datasheet-
35,025 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
G2R-1-SNI DC24(S)
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Automation and Safety |
| Series | G2RS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 440VAC, 125VDC - Max |
| Load - Max Switching | 4400VA, 1250W |
| Coil Current | 21.6 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | - |
| Approval Agency | CE, CSA, LR, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.1 kOhms |
| Base Product Number | G2R-1-S |

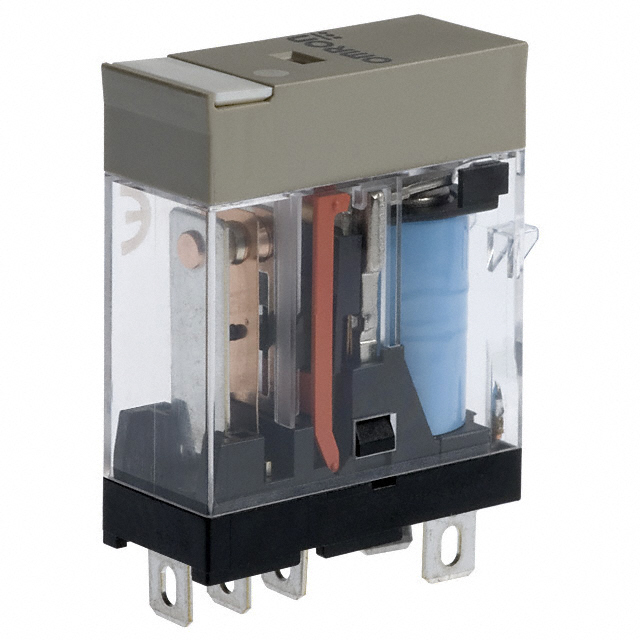

| Product Attribute | .jpg "G2R-1-SNI DC12(S)") |

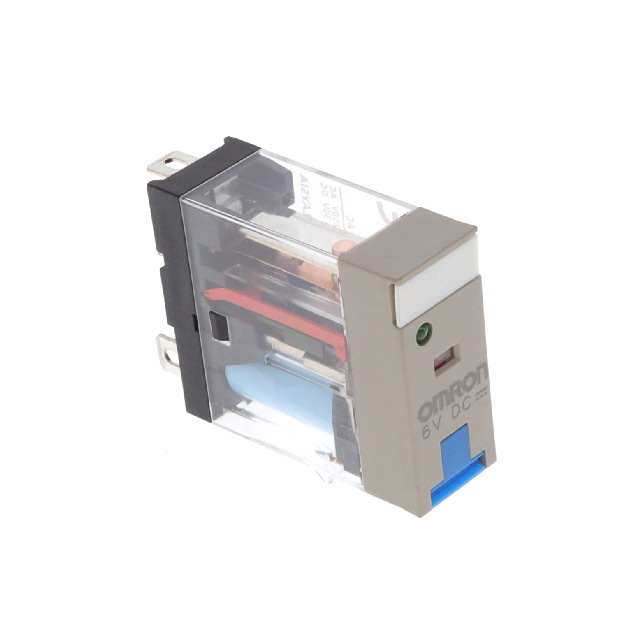

.jpg "G2R-1-SNI DC6(S)") |
(S).jpg "G2R-1-S AC200/(220)(S)") |
.jpg "G2R-1-S AC24(S)") |
| Part Number | G2R-1-SNI DC12(S) | G2R-1-SNI DC6(S) | G2R-1-S AC200/(220)(S) | G2R-1-S AC24(S) |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPDT 10A 12V | RELAY GEN PURPOSE SPDT 10A 6V | RELAY GEN PURPOSE SPDT 10A 220V | RELAY GEN PURPOSE SPDT 10A 24V |
| Series | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Packaging | Bulk | Bulk | Bulk | Bulk |
