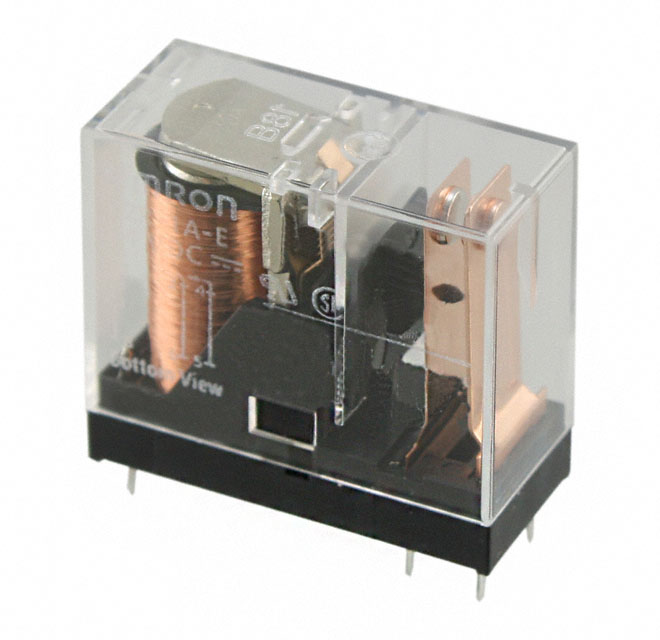

G2R-1A4-ASI-DC24
lmages are for reference only.G2R-1A4-ASI-DC24
RELAY GEN PURPOSE SPST 8A 24V
Datasheet-
83,768 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
G2R-1A4-ASI-DC24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G2R |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Load - Max Switching | 3040VA, 1000W |
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.1 kOhms |
| Base Product Number | G2R-1A |
| Product Attribute |  |
 |
 |
 |
| Part Number | G2R-1A AC24 | G2R-1A DC12 | G2R-1A DC20 | G2R-1A DC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPST 10A 24V | RELAY GEN PURPOSE SPST 10A 12V | RELAY GEN PURPOSE SPST 10A 20V | RELAY GEN PURPOSE SPST 10A 24V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Tray | Tube | Tray | Tube |
