G2RV-ST700 AC/DC48

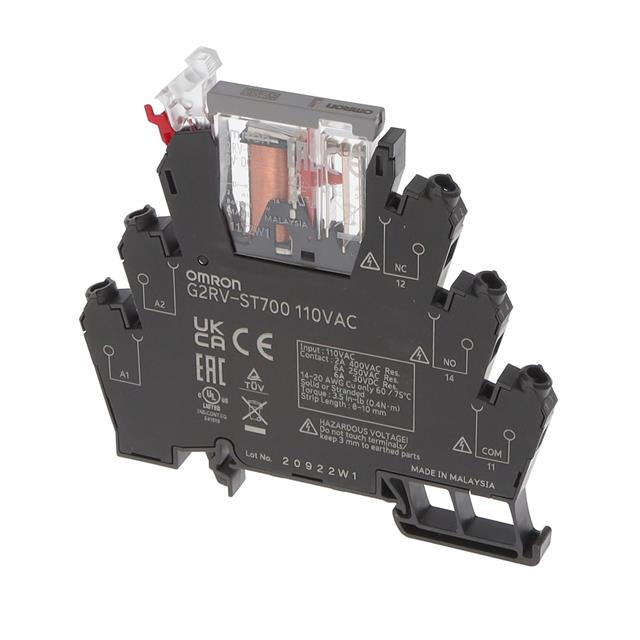

lmages are for reference only.G2RV-ST700 AC/DC48
RELAY GEN PURPOSE SPDT 6A 48V
Datasheet-
48,057 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 48VAC/DC Coil DIN Rail
G2RV-ST700 AC/DC48
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Automation and Safety |
| Series | G2RV-ST |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Coil Voltage | 48VAC/DC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 440VAC, 125VDC - Max |
| Load - Max Switching | 2640VA, 750W |
| Coil Current | 6.4 mA |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 38.4 VAC/DC |
| Must Release Voltage | 4.8 VAC/DC |
| Operate Time | 20 ms |
| Release Time | 40 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Alloy |
| Approval Agency | CE, cULus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 7.5 kOhms |
| Base Product Number | G2RV-ST |
| Product Attribute |  |
|
 |
|
| Part Number | G2RV-ST700 AC/DC24 | G2RV-ST700 AC100 | G2RV-ST700 AC110 | G2RV-ST700 AC200 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 6A 24V | RELAY GEN PURPOSE SPDT 6A 100V | RELAY GEN PURPOSE SPDT 6A 110V | RELAY GEN PURPOSE SPDT 6A 200V |
| Series | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Packaging | Box | Box | Box | Box |
