G2RV-ST700-AP DC24
lmages are for reference only.G2RV-ST700-AP DC24
RELAY GEN PURPOSE SPDT 50MA 24V
Datasheet-
43,330 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) DIN Rail
G2RV-ST700-AP DC24
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | Omron Automation and Safety |
| Series | G2RV-ST |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 50 mA |
| Switching Voltage | 30VAC, 36VDC - Max |
| Load - Max Switching | - |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Alloy, Gold Alloy |
| Approval Agency | CE, cULus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | G2RV-ST |
| Coil Current | 13.5 mA |
| Coil Resistance | 1.778 kOhms |
| Product Attribute |  |
 |
 |
|

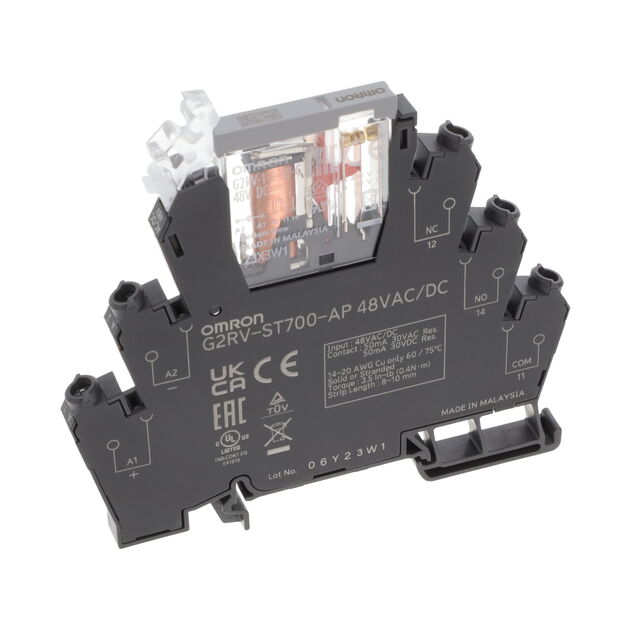

| Part Number | G2RV-ST700-AP DC12 | G2RV-ST700-AP AC/DC24 | G2RV-ST700-AP AC/DC48 | G2RV-ST700-AP AC100 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 50MA 12V | RELAY GEN PURPOSE SPDT 50MA 24V | RELAY GEN PURPOSE SPDT 50MA 48V | RELAY GEN PURPOSE SPDT 50MA 100V |
| Series | G2RV-ST | G2RV-ST | G2RV-ST | G2RV-ST |
| Packaging | Box | Box | Box | Box |
