G2SB80-E3/45
lmages are for reference only.G2SB80-E3/45
BRIDGE RECT 1PHASE 800V 1.5A GBL
Datasheet4-SIP, GBL
48,952 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole GBL
G2SB80-E3/45
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 750 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBL |
| Supplier Device Package | GBL |
| Base Product Number | G2SB80 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

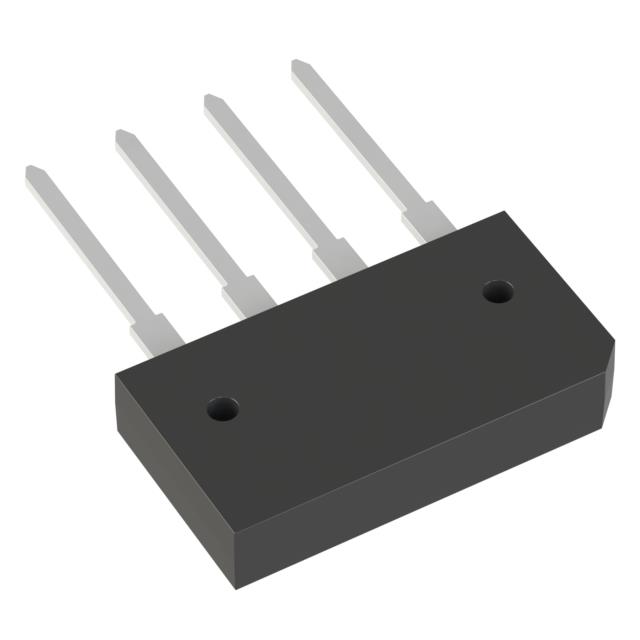

| Part Number | G2SB80-E3/51 | G2SB80-BP | G2SB80-M3/45 | G2SB80-M3/51 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 800V 1.5A GBL | DIODE GPP 2A GBL | DIODE BRIDGE | BRIDGE RECT 1PHASE 800V 1.5A GBL |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
