Product CatalogPart Number
G3F34MT12K
Manufacturer
GeneSiC SemiconductorDescription
1200V 34M TO-247-4 G3F SIC MOSFE
Datasheet
DatasheetPackage
TO-247-4
In Stock
63,062 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
G3F34MT12K
G3F34MT12K
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 1200 V 63A (Tc) 263W (Tc) Through Hole TO-247-4
Quick Inquiry
G3F34MT12K
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 63A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 26A, 18V |
| Vgs(th) (Max) @ Id | 4.3V @ 18mA |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2418 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 263W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4 |
| Package / Case | TO-247-4 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 104 nC @ 18 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | G3F34MT12J-TR | G3F320MT12J-TR | G3F33MT06J-TR | G3F33MT06K |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

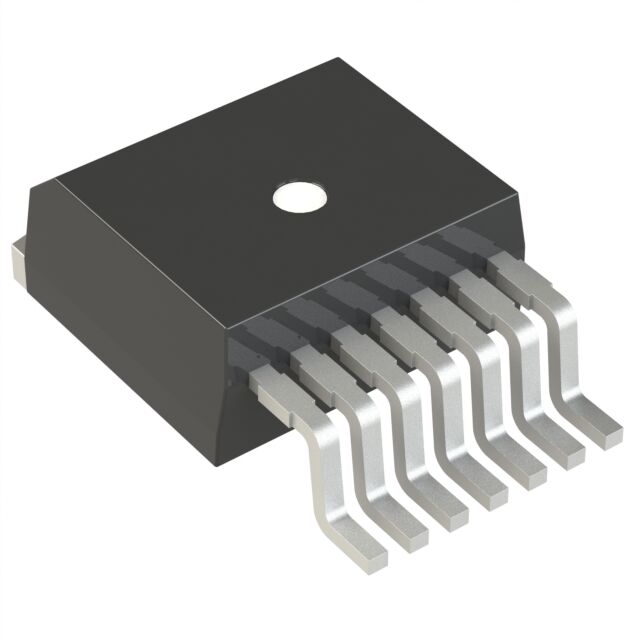

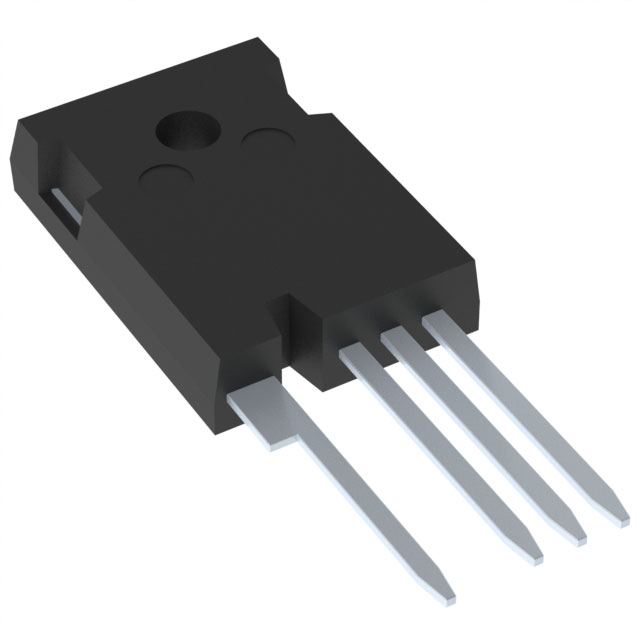

| Description | 1200V 34M TO-263-7 G3F SIC MOSFE | 1200V 320M TO-263-7 G3F SIC MOSF | 650V 27M TO-263-7 G3F SIC MOSFET | 650V 27M TO-247-4 G3F SIC MOSFET |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
